Fujitsu PRIMERGY RX900 S2 Upgrade And Maintenance Manual

RX900 S2 Upgrade and Maintenance Manual 165
Expansion cards and BBU
Ê Press the green button (1).
Ê Lift the handle (2) to disconnect the PCI Riser (PCIR) from the baseboard.
Ê Pull the PCIR up and out by using the handle (3).
8.10.4 Removing the Modular RAID controller

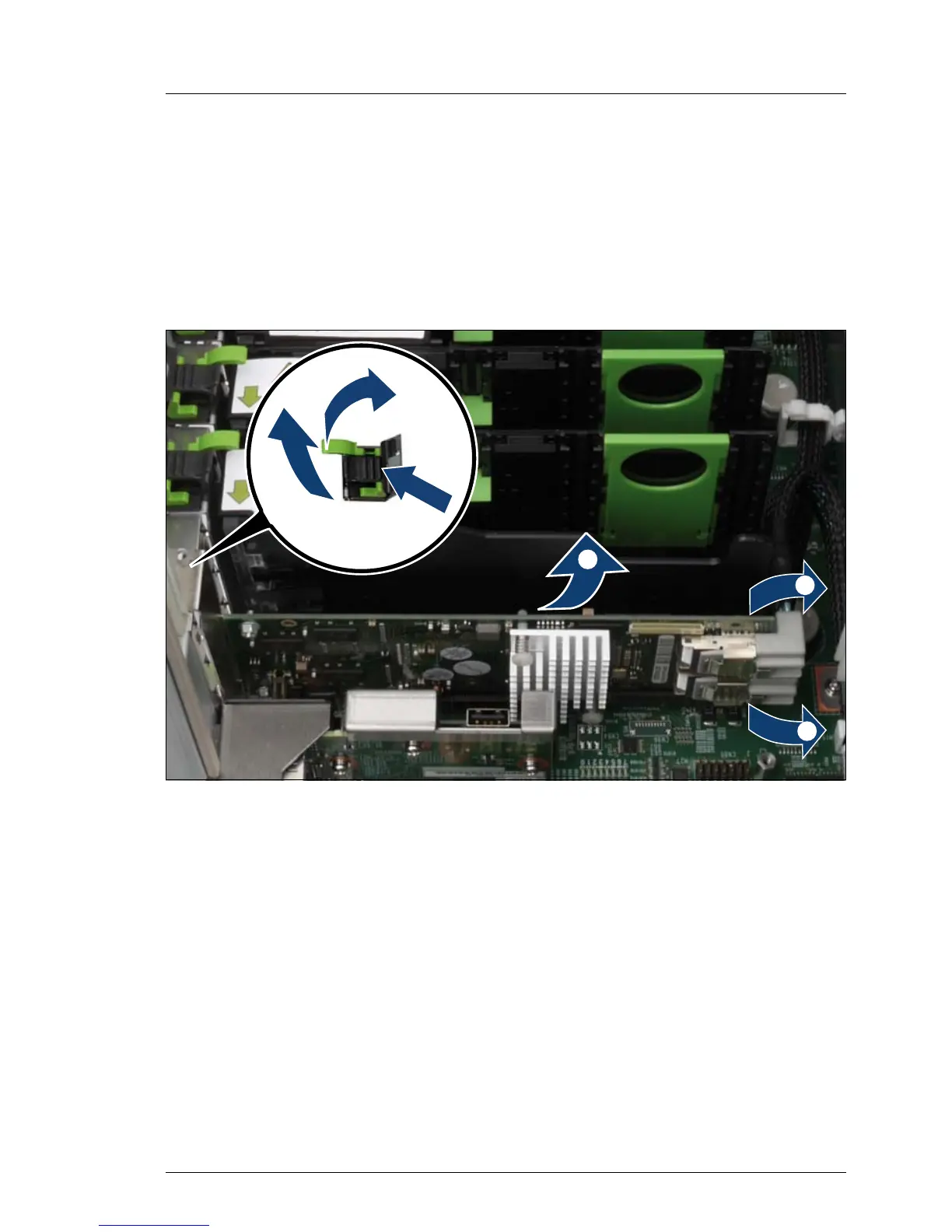

Figure 95: Removing the Modular RAID controller from the slot
Ê Remove the slot lock by pulling the green handle upward (1), pushing the
plastic part down (2), and lifting the slot lock (3).
Ê Carefully pull the Modular RAID controller out of the lot (4).
Ê Disconnect the SAS cables from the Modular RAID controller ports.
/
0
1
2
3
3
