8.5.4 Pulling the expansion card out of the slot

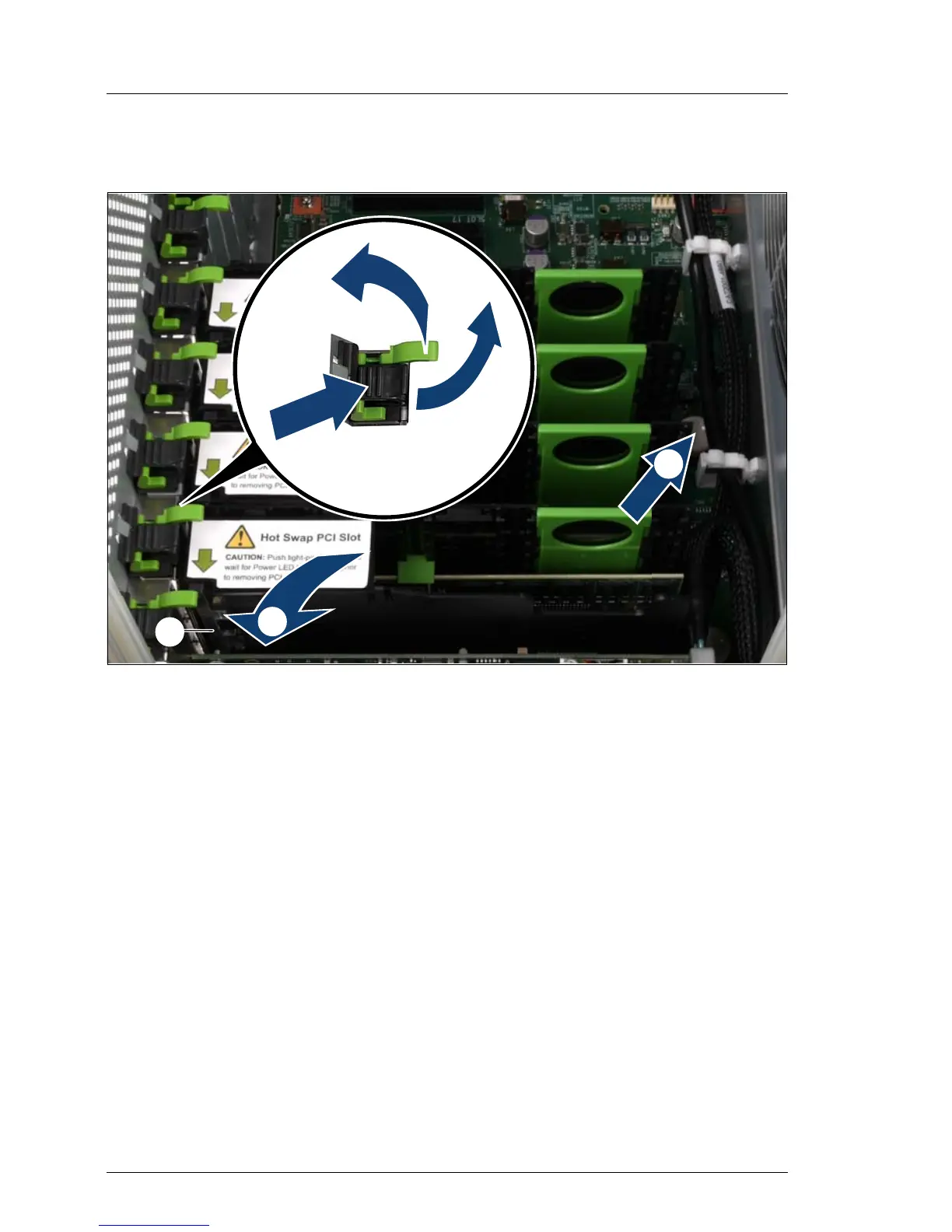

Figure 70: Pulling the expansion card out of the slot
Ê Open the slot containing the expansion card (1).
Ê Remove the slot lock by pulling the green handle upward (2), pushing the
plastic part down (3) and lifting the slot lock (4).
Ê Hold the removal tool by the green handle and pull it out of the PCIe slot
together with the expansion card (3).
I Do not pull on the expansion card itself.
/
