13.1.4 Inserting the local service display

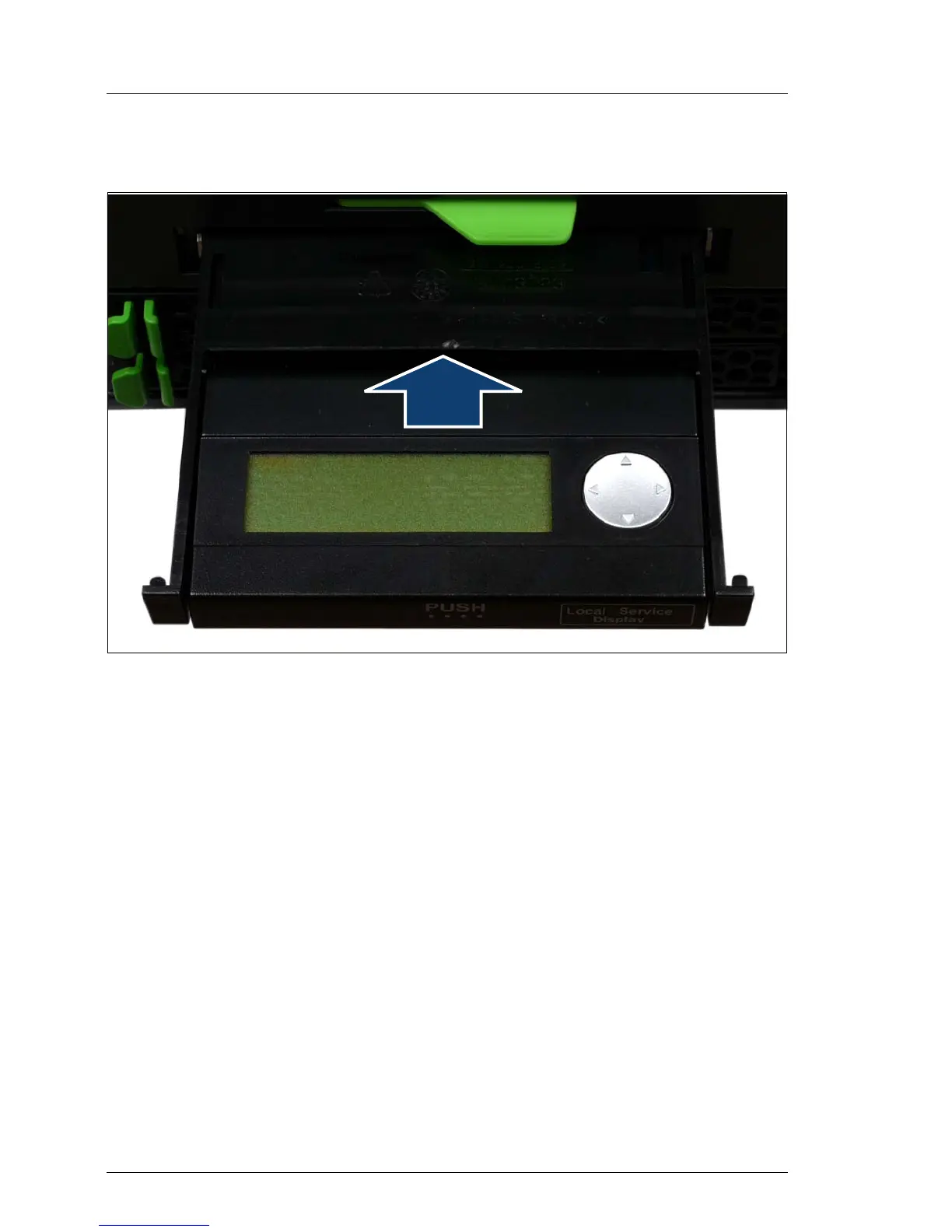

Figure 153: Inserting the local service display
Ê Slide the local service display in the bay so that there is enough space to
connect the chassis ID board cable.
