14.6.9 Inserting the baseboard

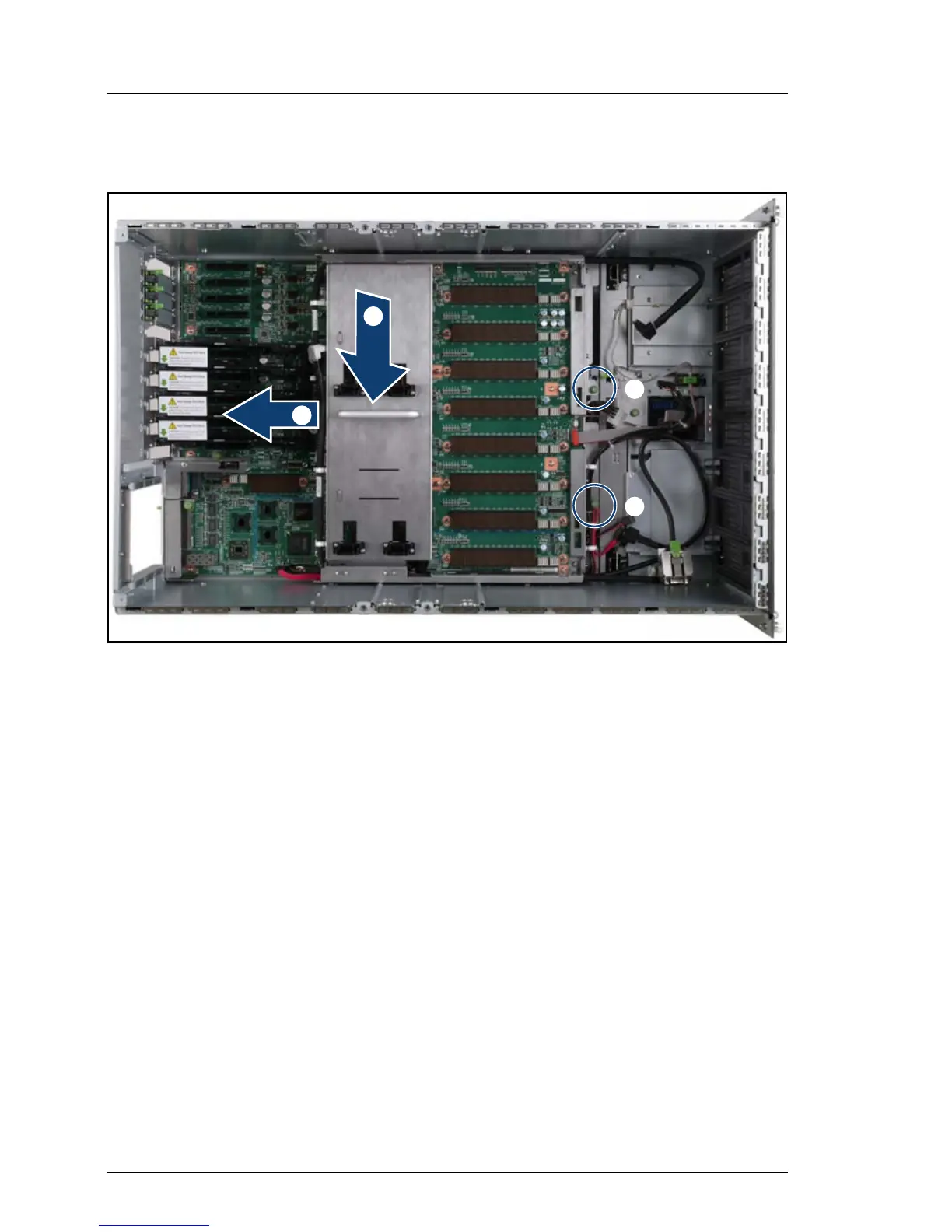

Figure 182: Inserting the baseboard
Ê Carefully lower the baseboard in the chassis by using the handle (1).
Ê Slide the baseboard in the direction of the arrow (2) until it is into place.
Ê Fasten the captive screws (3).
V CAUTION!
After installing the new baseboard, it is necessary to update system
specific data (e.g. BIOS, iRMC S2 firmware) to ensure proper operation
(BIOS flash floppy disk, BIOS flash memory stick or iRMC flash memory
stick, refer to the BIOS Manual for a detailed description).
I If the customer owns a license key for Advanced Video Redirection and
Remote Storage (iRMC2 Advanced Pack), the license key has to be
loaded onto the iRMC S2 via the iRMC S2 web interface after replacing
the baseboard. In addition, the iRMC S2 requires configuration. Please
refer to the "ServerView Suite iRMC S2 - integrated Remote
Management Controller" manual for a detailed description.
