Fujitsu PRIMERGY RX900 S2 - Inserting the Baseboard

RX900 S2 Upgrade and Maintenance Manual 345
Cables
For the SAS cable

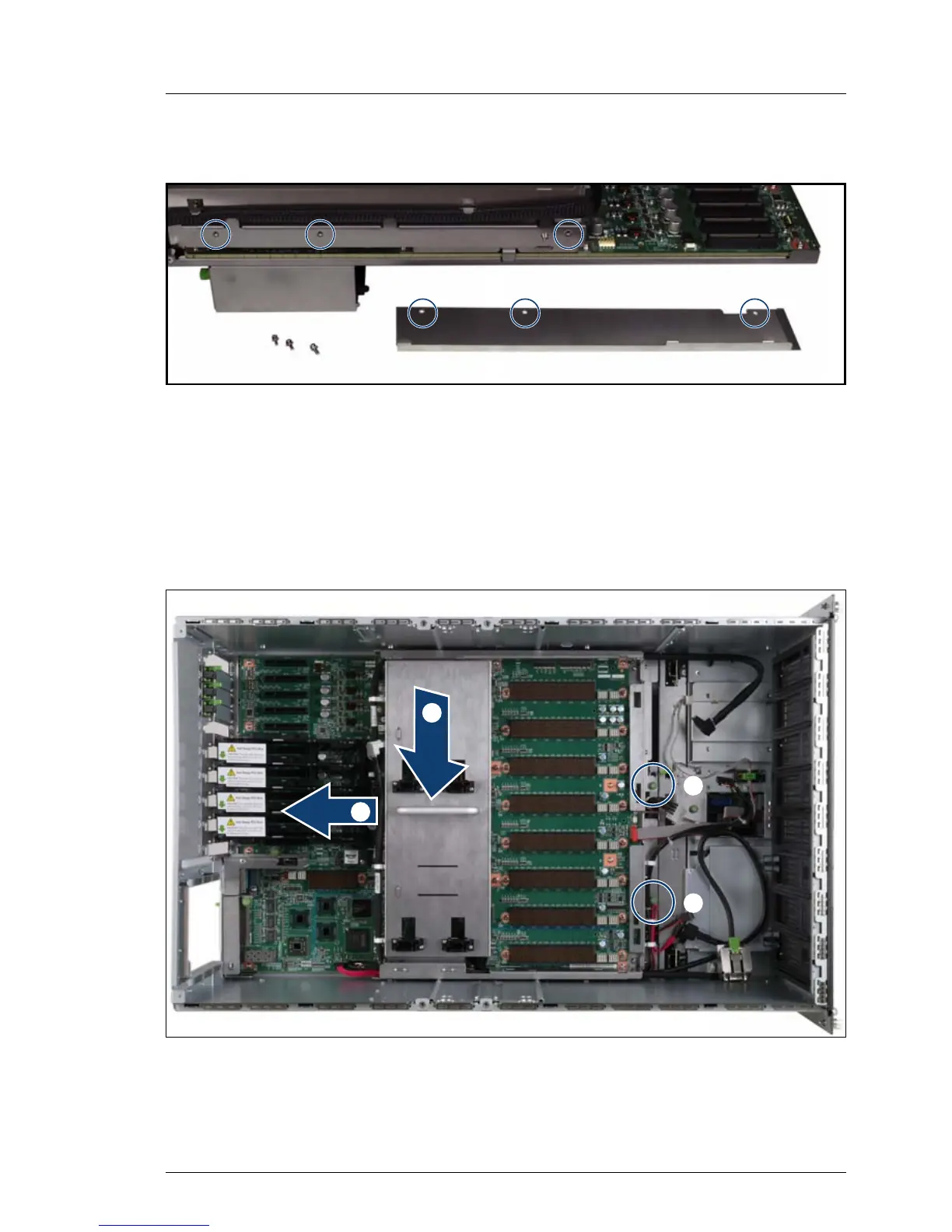

Figure 235: Closing the SAS cable guide
Ê Insert the new cable and close the cable clamps.
Ê Close the cable guide and fasten the screws (see circles).
15.5.11 Inserting the baseboard
Figure 236: Inserting the baseboard
Ê Carefully lower the baseboard in the chassis by using the handle (1).
