Fujitsu PRIMERGY RX900 S2 - Removing the CPUMEMR Guide

66 Upgrade and Maintenance Manual RX900 S2
Power supply
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12047-001.fm
5.4.6 Removing the CPUMEMR guide

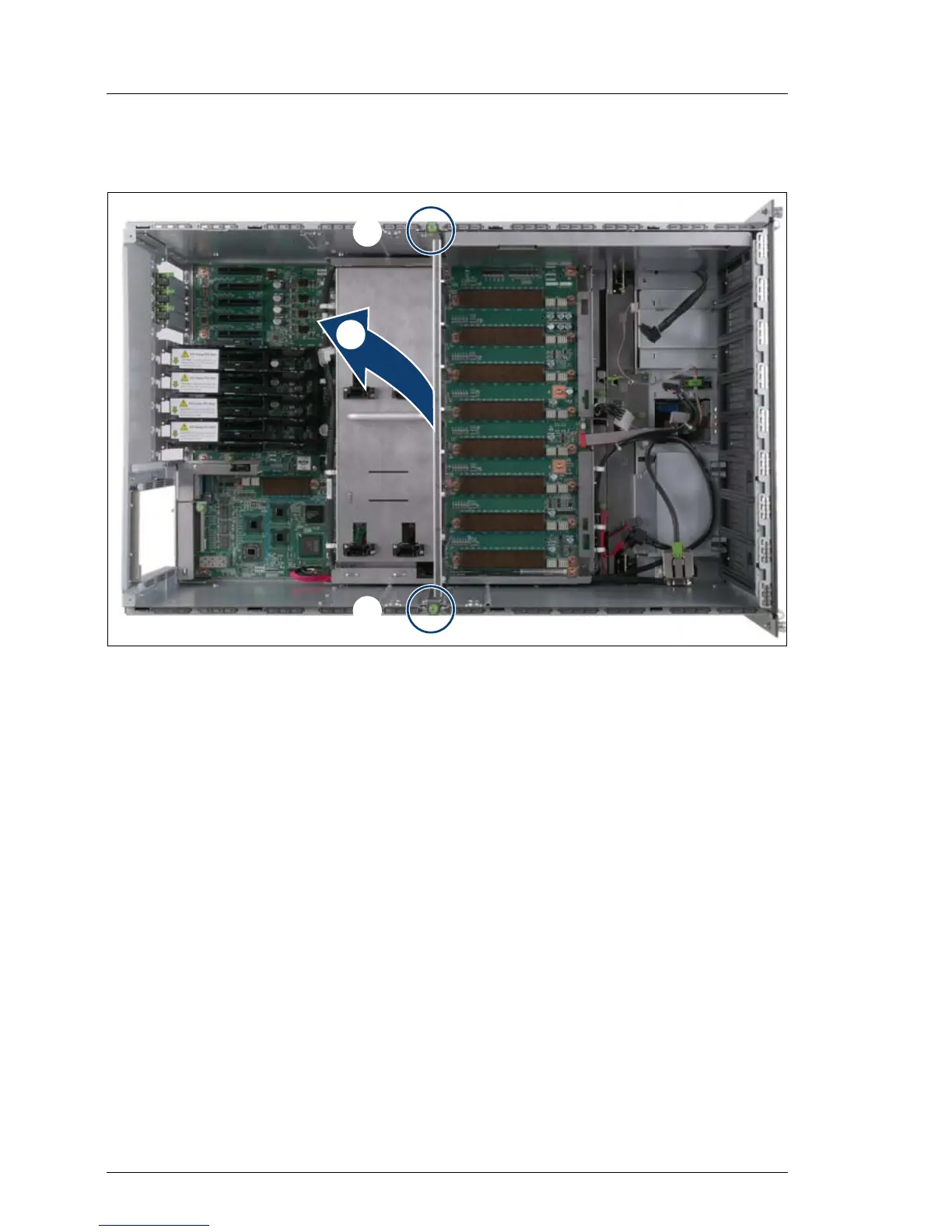

Figure 21: Removing the CPUMEMR guide
Ê Loosen the captive screws of the CPUMEMR guide (1).
Ê Lift the CPUMEMR guide out of the chassis (2).
/
/
