15.3.3 Removing the chassis ID board

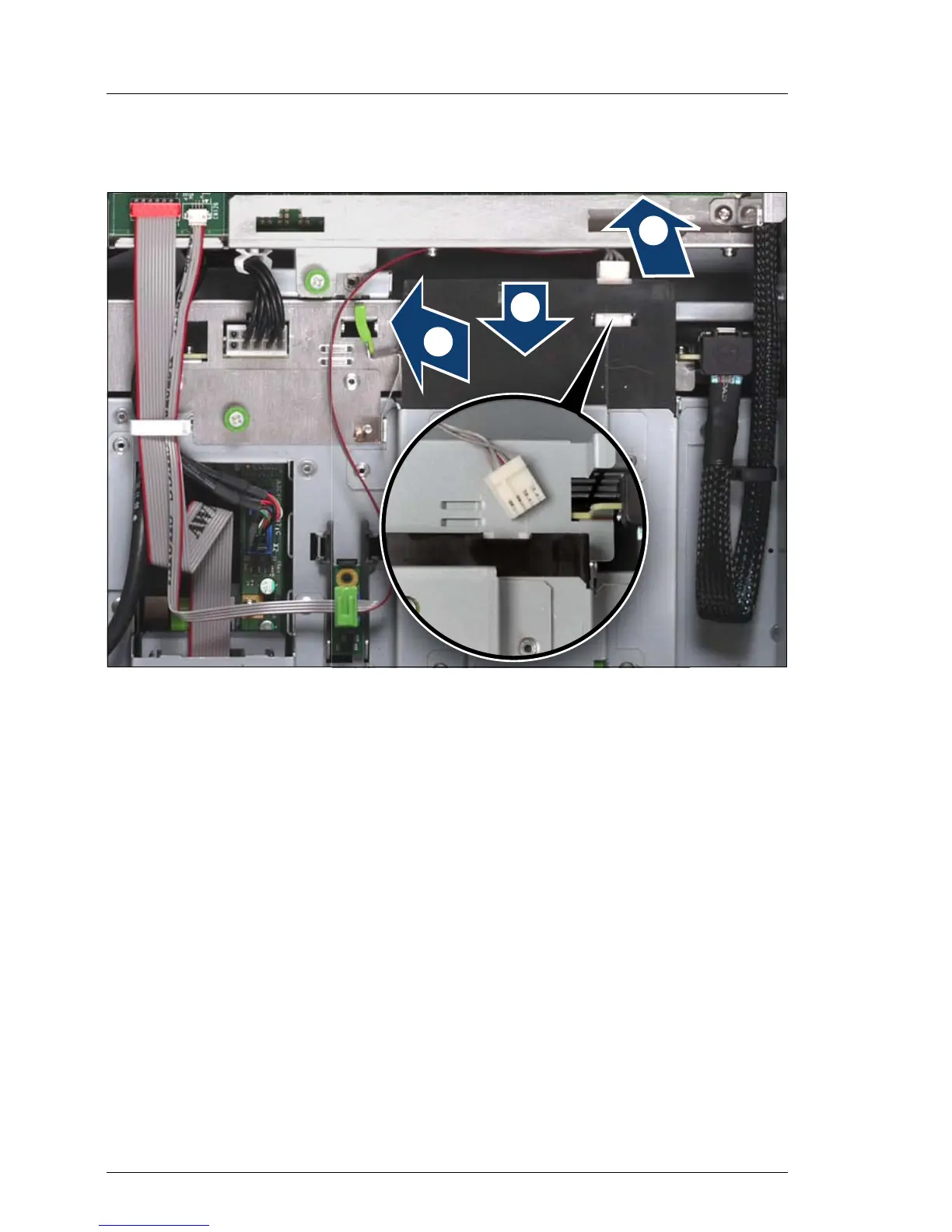

Figure 202: Removing the chassis ID board cable from the local service display
Ê Unlock the local service display (1).
Ê Slide the local service display outward so that you can disconnect the
chassis ID board cable (2).
Ê Disconnect the chassis ID board cable (3).
/
