9.1.6 Inserting the CPUMEMR in the slot

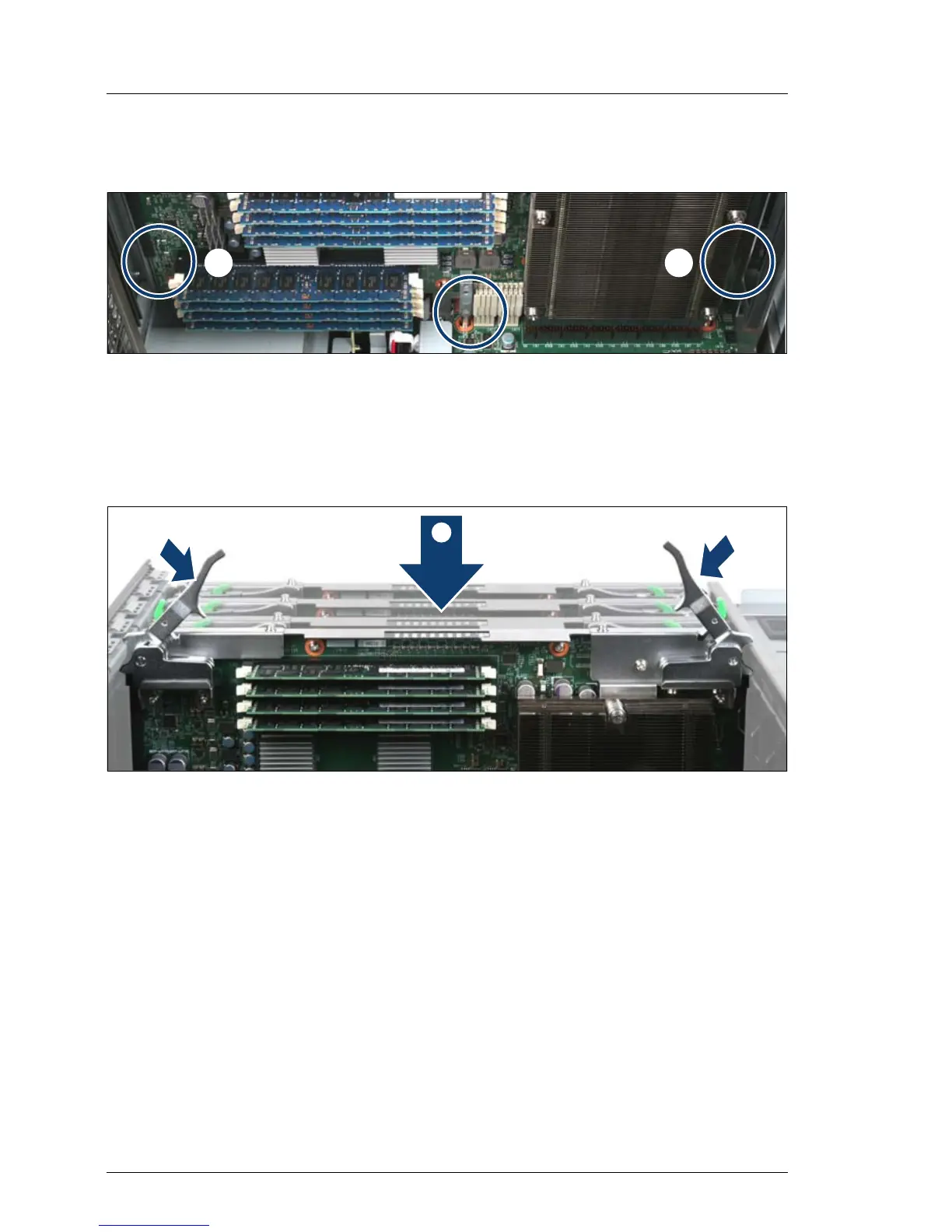

Figure 108: Inserting the CPUMEMR in the slot
Ê Carefully insert the CPUMEMR in the slot.
I Please make sure that you place the PCB and not the metal shield in
the guides (1).
Figure 109: Locking the CPUMEMR
Ê Lock the CPUMEMR by pushing down the handles (1).
Ê Ensure that the CPUMER is connected properly to the baseboard by
pushing it carefully down until it clicks into place (2).
//
/
