Fujitsu PRIMERGY RX900 S2 Upgrade And Maintenance Manual

356 Upgrade and Maintenance Manual RX900 S2
Appendix
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12058-001.fm

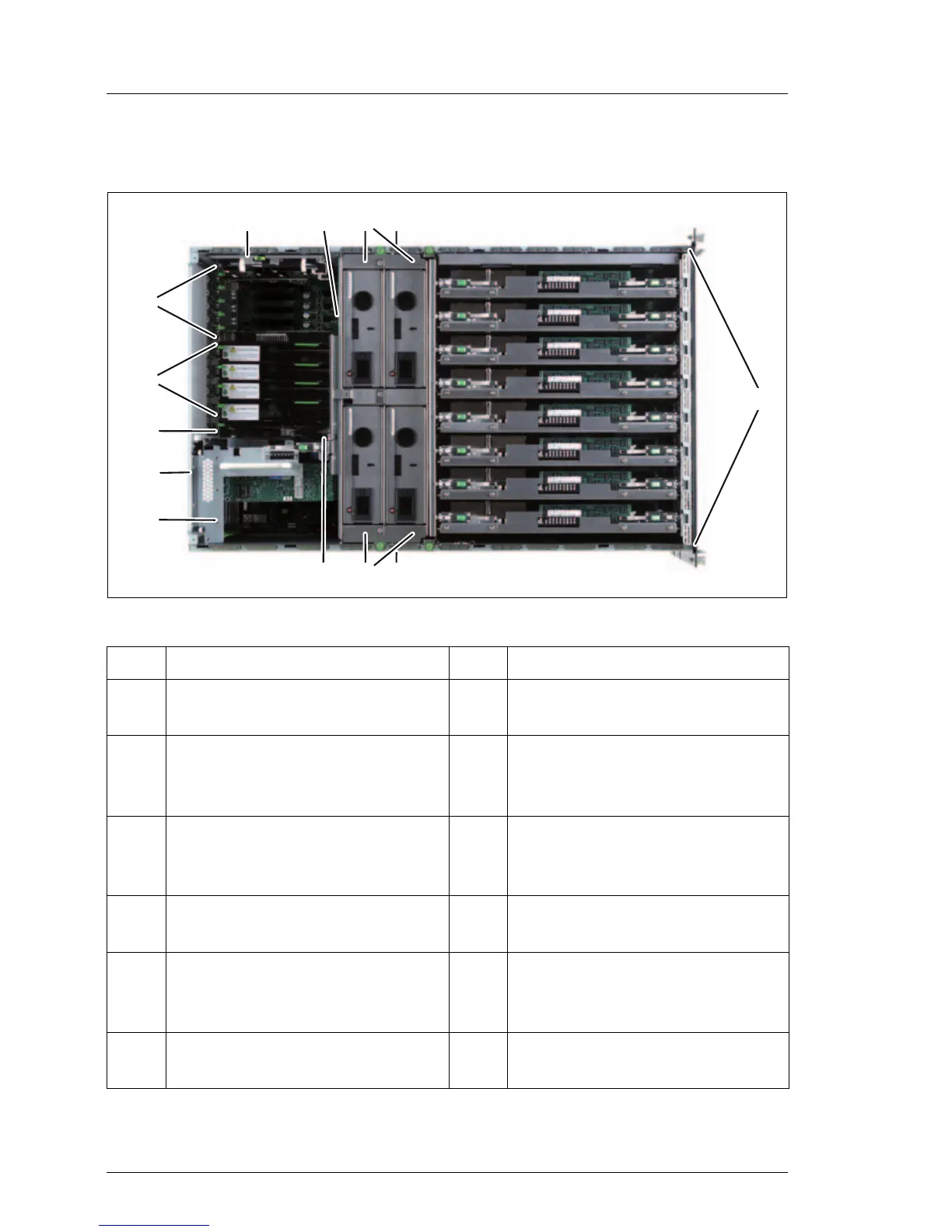

16.1.3 Top view
Figure 246: Top view
Pos. Component Pos. Component
1 Fan #1 - #4, see figure 247 7 Modular RAID controller (PCIe
slot #8), see figure 248
2 IOH #1 - #4 (underneath the
fan)
8 Hot-plug PCIe slots #9 - #12
(from bottom to top), see
figure 248
3 CPUMEMRs #1 - #8
(from bottom to top), see
figure 249 and figure 250
9 Non-hot-plug PCIe slots #13 -
#17 (from bottom to top), see
figure 248
4 TPM connector 10 2 BBUs for SAS RAID
controllers
5 PCIR with non-hot-plug PCIe
slots #1 - #7 (from bottom to
top), see figure 248
11 UFM connector
6 I/O board (underneath the
PCIR)
Tabelle 8:
3
9
/ 0
1
8
6
4
7
5
2 0/
