8.9.3 Removing the PCI Riser (if applicable)

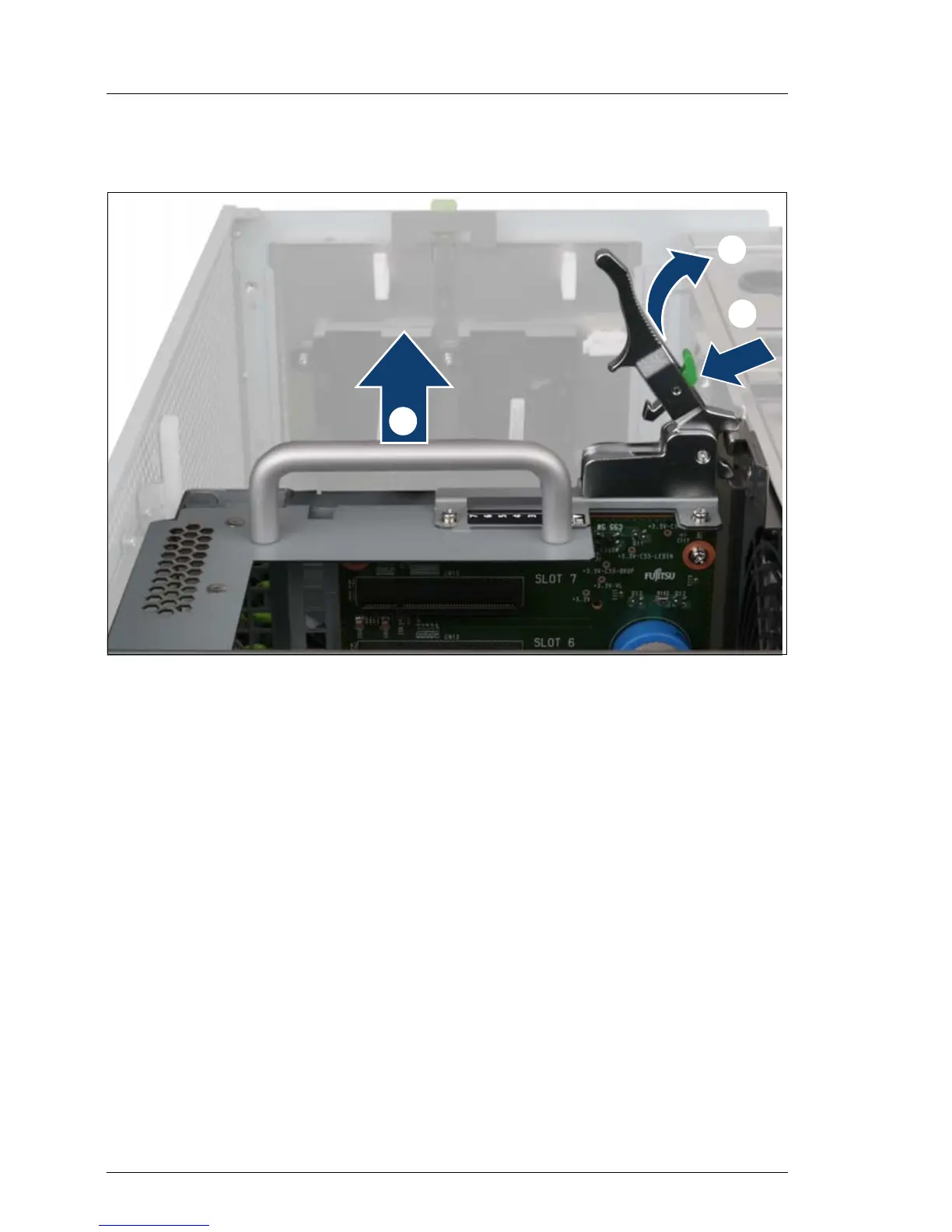

Figure 90: Removing the PCI Riser
Ê Press the green button (1).
Ê Lift the handle (2) to disconnect the PCI Riser (PCIR) from the baseboard.
Ê Pull the PCIR up and out by using the handle (3).
