9. Remove the PCI Riser, see "Expansion cards and BBU" on page 105
10.Remove the BBU holder, see "Expansion cards and BBU" on page 105
11. "Removing the I/O board" on page 243
12."Removing the UFM" on page 266
13."Removing the TPM" on page 276
14.6.3 Sliding the local service display outward

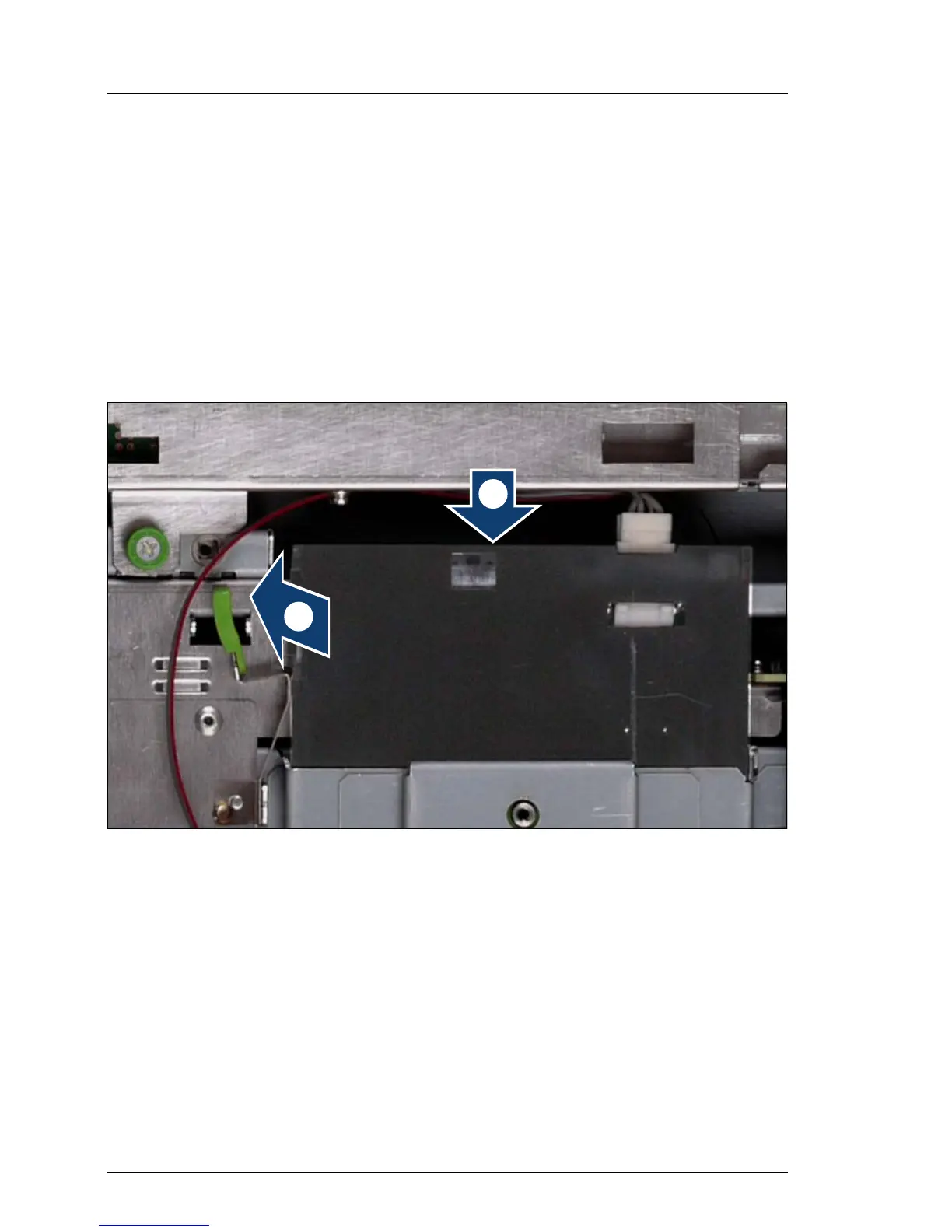

Figure 176: Sliding the local service display outward
Ê Unlock the local service display (1).
Ê Slide the local service display outward a few centimeters so that you have
free access (2).
/
