16.6 Cabling

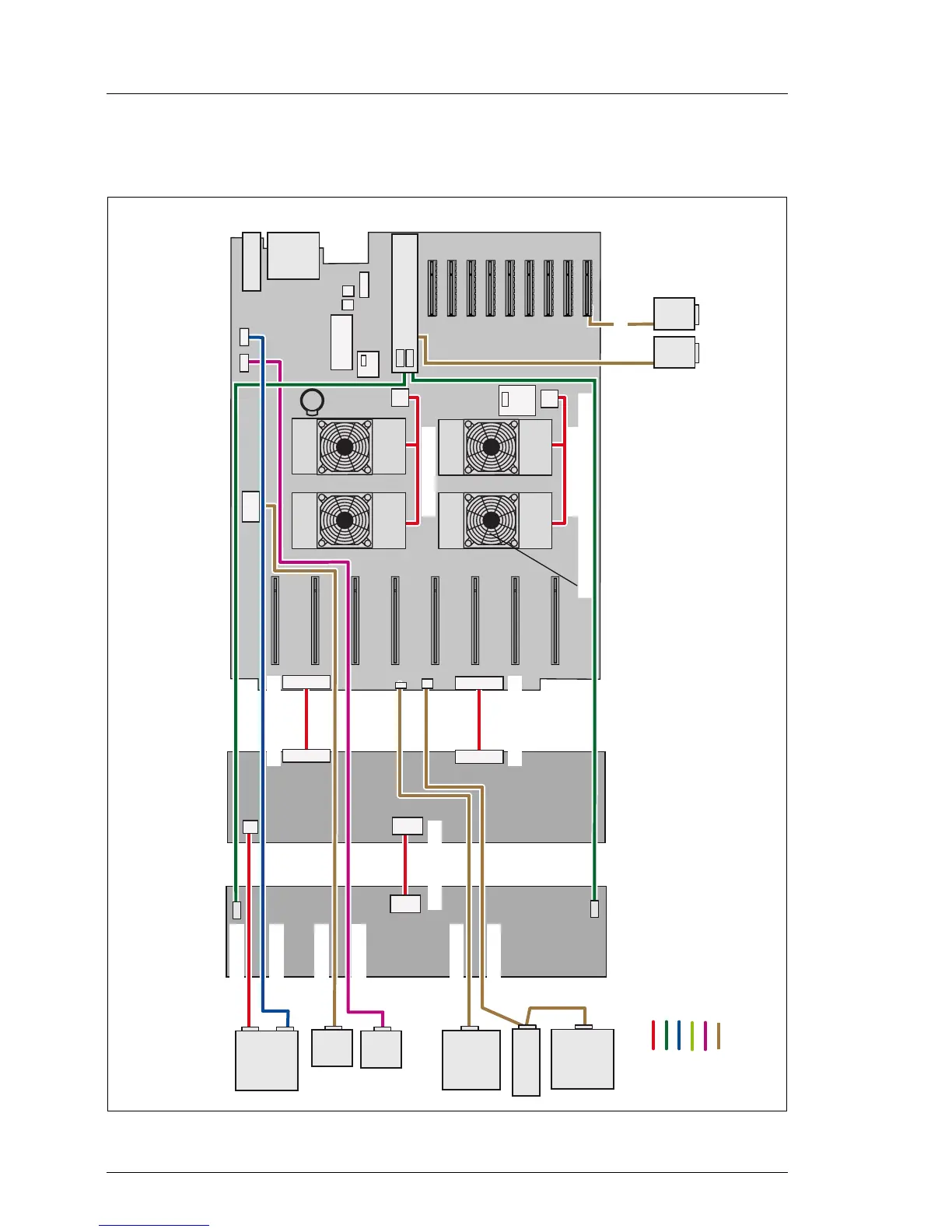

Figure 253: Cabling plan of RX900 S2
S ATA
SAS
Power
Key:
Ground
USB Signal
Baseboard D3144
Control panel
SAS Backplane
Power Distribution Board
CA07236-G002
Front USB
Local service display
ID_TEMP
Front VGA
BBU
0-3
4-7
Modular RAID
Optical drive
CA07236-G001
CA07236-G003 (within each fan unit)
T26139-Y3987-V1
CA72001-4881 CA07236-G009
CA72001-4880
CA07236-G006
CA07236-G005 CA07236-G005
CA72001-4880
T26139-Y3987-V1
T26139-Y3994-V1
CA72003-1301
CA07236-G004
CA07236-G004
BBU
