RX900 S2 Upgrade and Maintenance Manual 291
Baseboard
14.6.14 Sliding the local service display inward

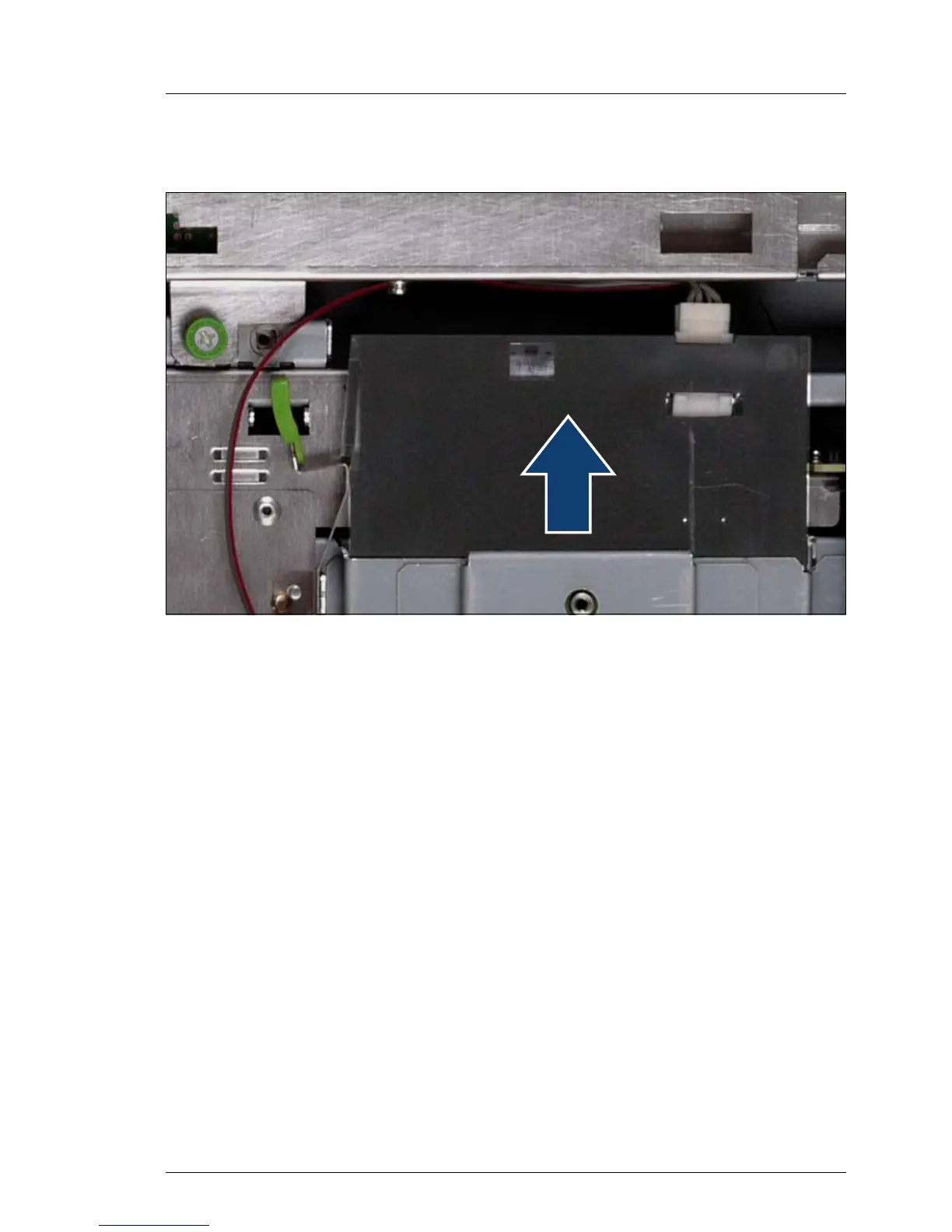

Figure 187: Sliding the local service display inward
Ê Slide the local service display inward until it clicks into place.
14.6.15 Completing the task
Ê Perform the following procedures to complete the task:
1. "Installing the TPM board" on page 269
2. "Inserting the UFM" on page 263
3. "Installing the I/O board" on page 243
4. Install the BBU holder, see "Expansion cards and BBU" on page 105
5. Install the PCI Riser, see "Expansion cards and BBU" on page 105
6. Install all expansion cards and dummy modules in PCIe slots #8 to #17,
see "Expansion cards and BBU" on page 105
I Make sure that you reinstall each card in the slots it was located
before the replacement.
