RX900 S2
Upgrade and Maintenance Manual
243
Front panel and ext
ernal connectors
12.4.4
Removing the I/O board

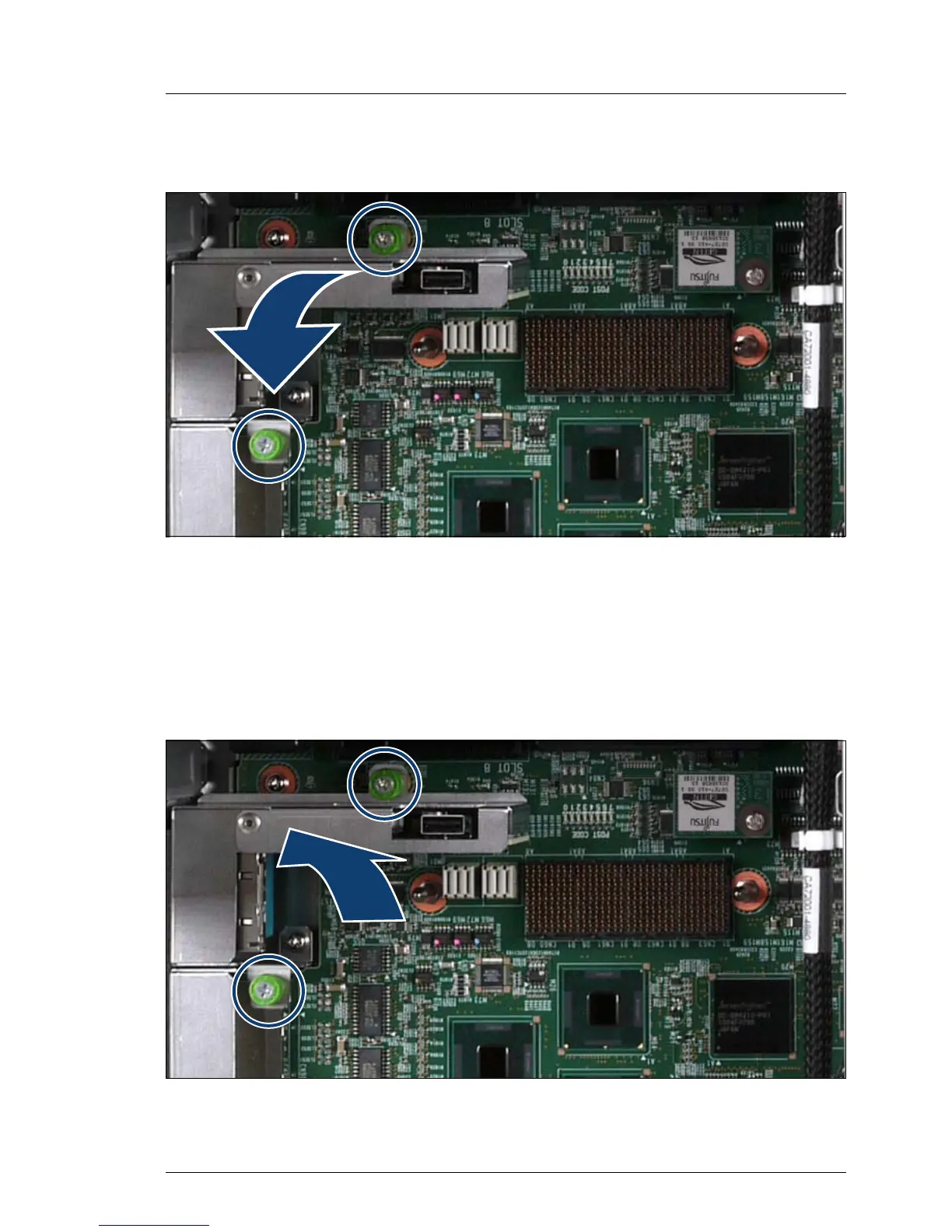

Figure 149: Re
moving the I/O boa
rd
Ê
Loosen the two captive screws
(see circles).
Ê
Remove the I/O board.
12.4.5
Inst
alling t
he I/O boa
rd
Figure 150: Installing the I
/O board
242
244
