RX900 S2 Upgrade and Maintenance Manual 285
Baseboard
14.6.8 Removing the baseboard

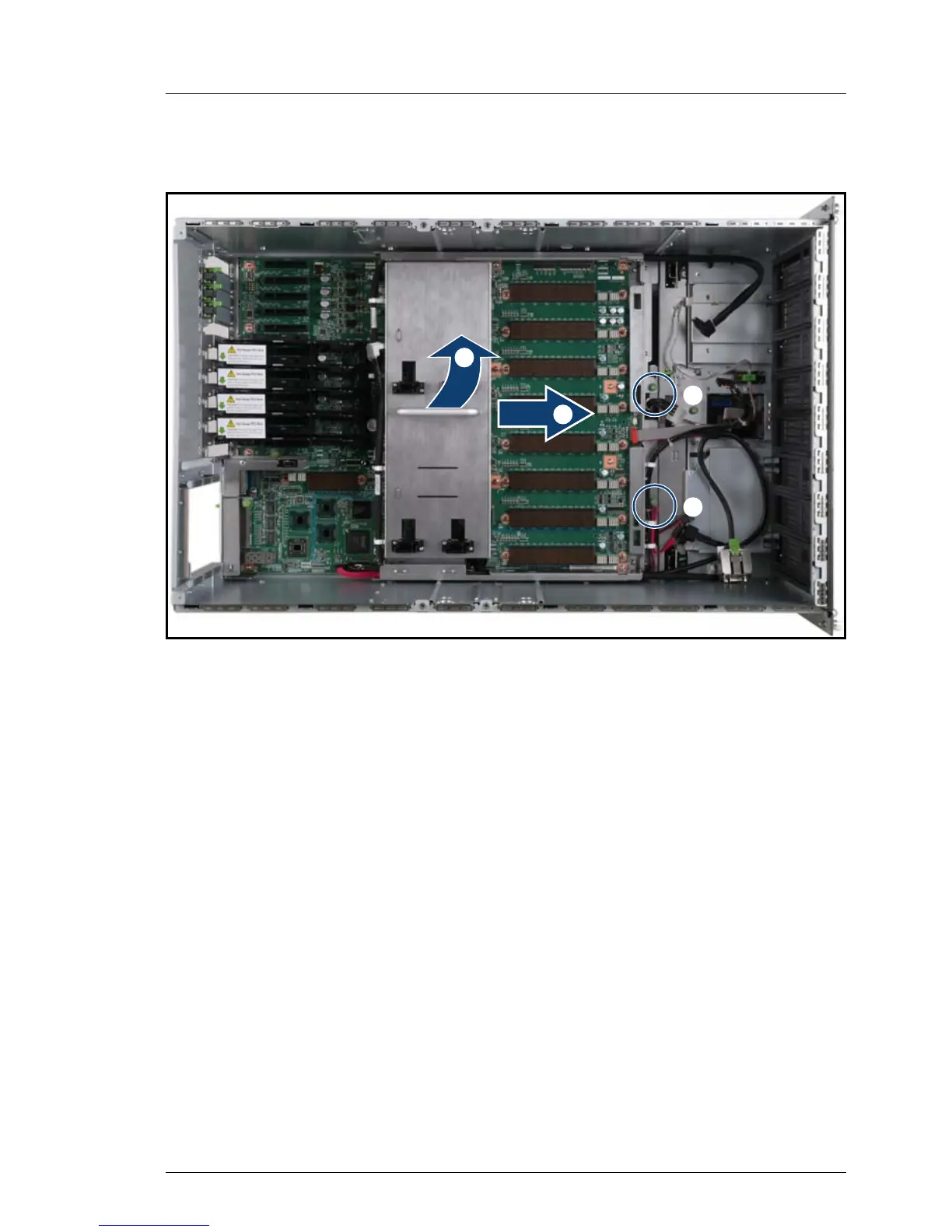

Figure 181: Removing the baseboard
Ê Loosen the captive screws (1).
Ê Slide the baseboard approximately 1 cm in the direction of the arrow (2).
V CAUTION!
Make sure that you have removed all power supply units before
removing the baseboard. Otherwise, the power supply units or the
power distribution board might be damaged.
Ê Carefully lift the baseboard out of the chassis by using the handle (3).
/
/
