Main memory
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12051-001.fm
5. "Opening the server" on page 44
6. "Locate the faulty component by PRIMERGY diagnostics indicators" on
page 39
7. "Identifying a fault on the CPUMEMR" on page 189
8. "Removing the CPUMEMR" on page 190
9.4.3 Removing the DIMM memory module

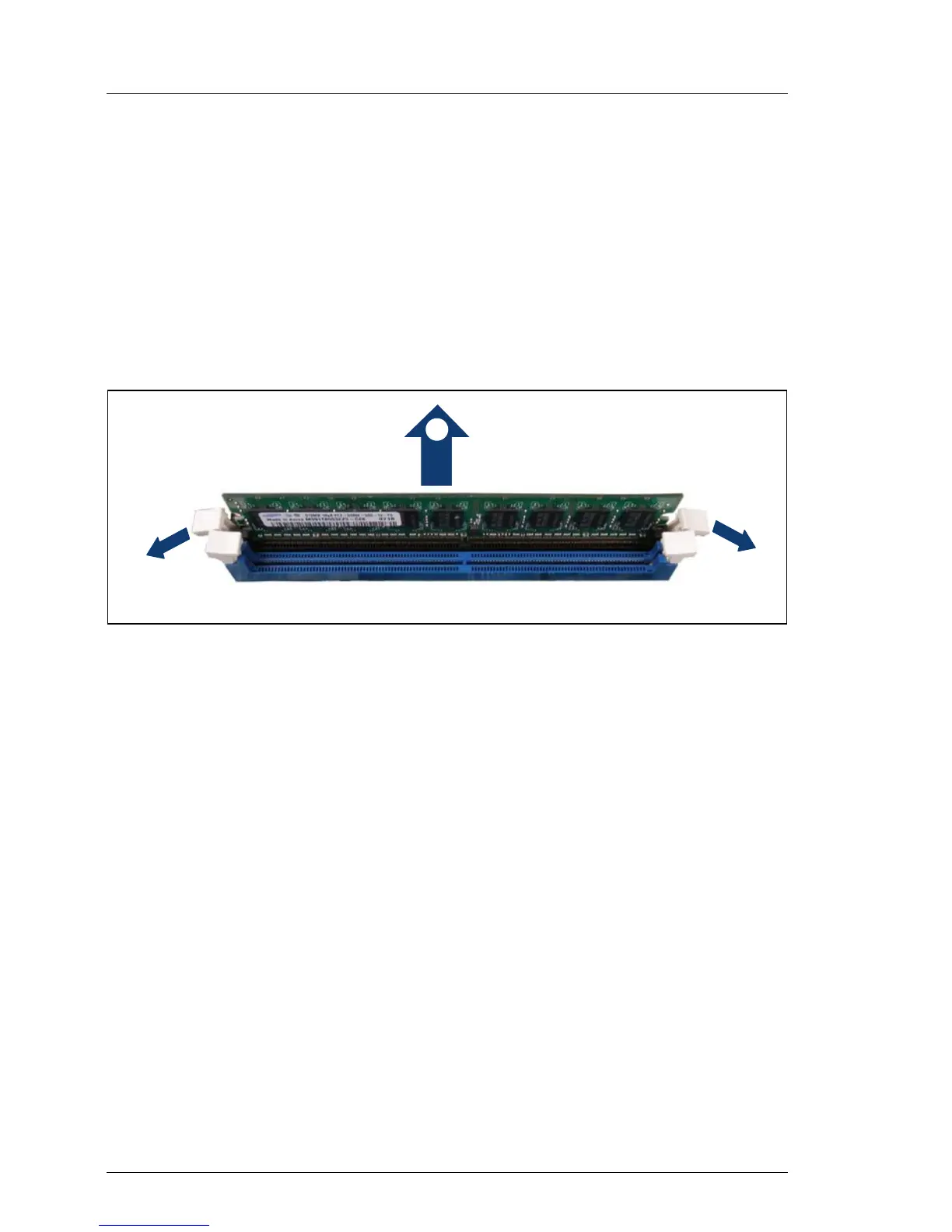

Figure 115: Removing the DIMM memory module
Ê Press the securing clips on either side of the DIMM memory module slot
outward (1).
Ê Pull the DIMM memory module out of the slot (2).
9.4.4 Reinstalling a DIMM memory module
Ê Cross-check the DIMM memory module slot position with the configuration
rules summarized in "Selecting the DIMM memory module slot" on
page 192. For detailed information see "Baseboard D3144, CPUMEMR
D3145, PCIR D3146 for PRIMERGY RX900 S2 Technical Manual".
/
/
