RX900 S2 Upgrade and Maintenance Manual 297
Cables
15.1.5 Removing the fan cable

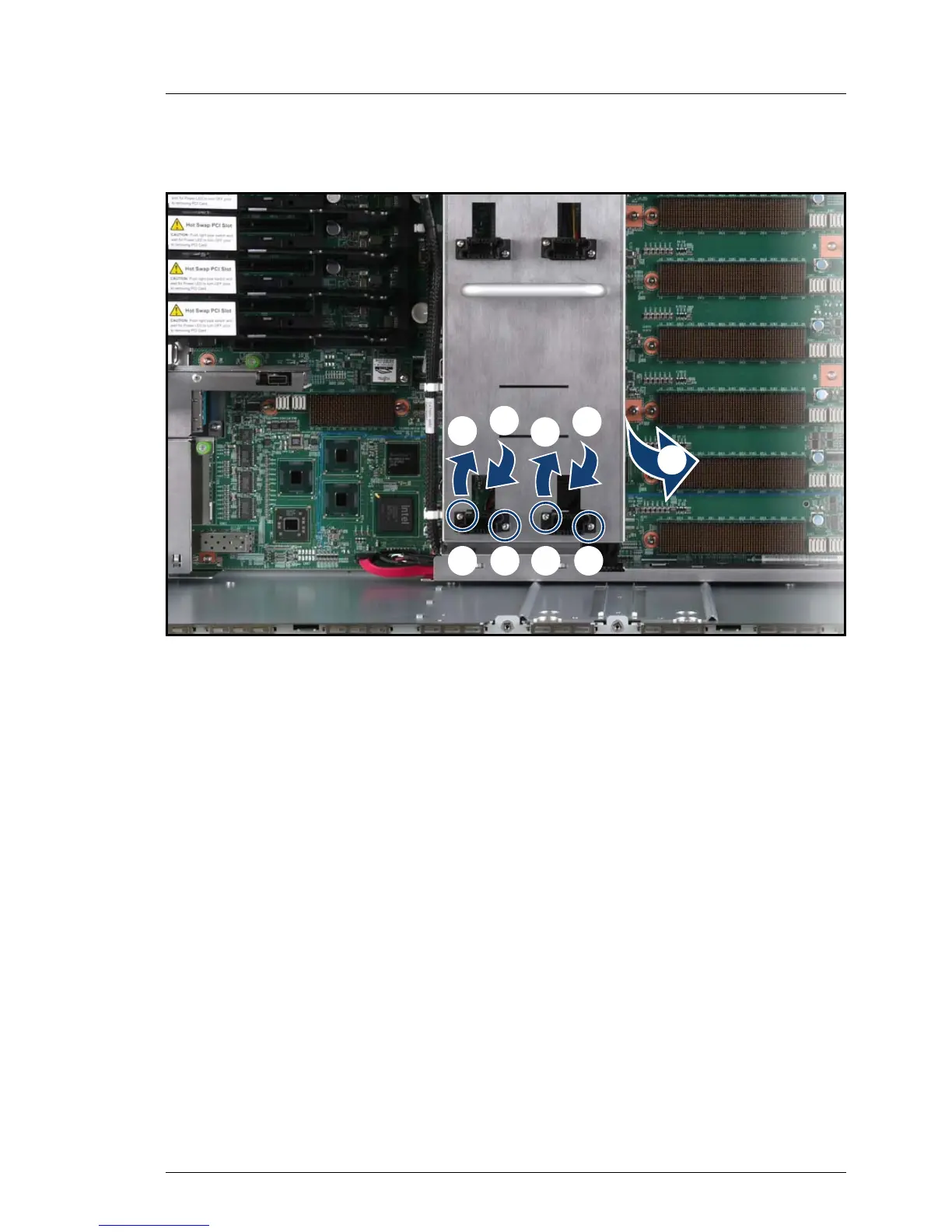

Figure 190: Removing the fan cable
Ê Remove the screws and the plug washers of the fan connectors (1).
I Be careful while removing the screws as the plug washers might fall
on the baseboard.
Ê Rotate each connector by 90° (2) and slide it in the cutout of the fan base (3).
Ê Pull the connectors out from underneath the fan base as indicated by the
arrow (4).
////
0
1
0
1
2
