8.6.5 Removing the expansion card from the removal
tool

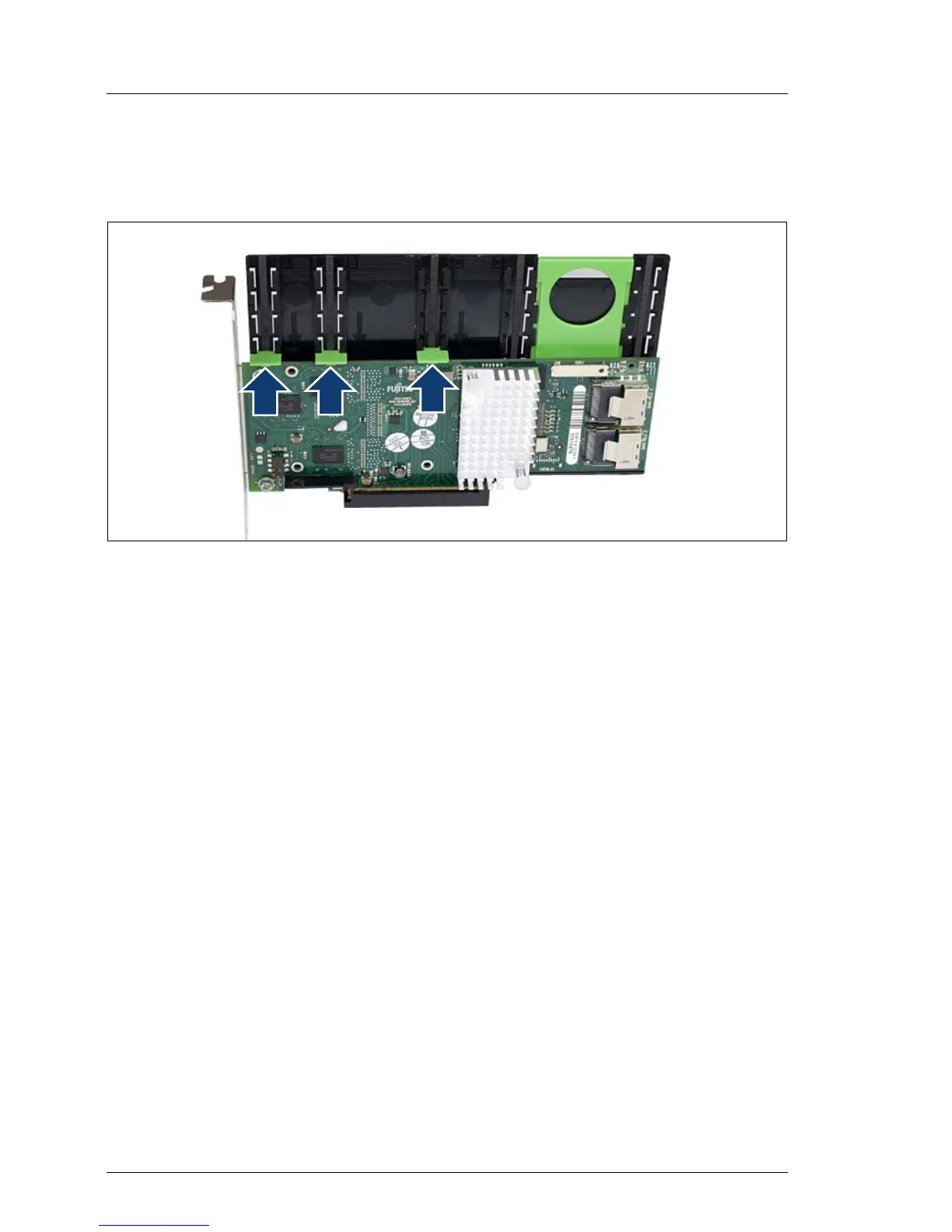

Figure 76: Removing the expansion card from the removal tool
Ê Lift the green movable engaging hooks no more than approximately 1 mm
until the expansion card is completely released.
Ê Take the expansion card out and put it aside.
V CAUTION!
The engaging hooks may easily be damaged if too much pressure is
applied.
