Fujitsu PRIMERGY RX900 S2 - Population Order

RX900 S2 Upgrade and Maintenance Manual 193
Main memory

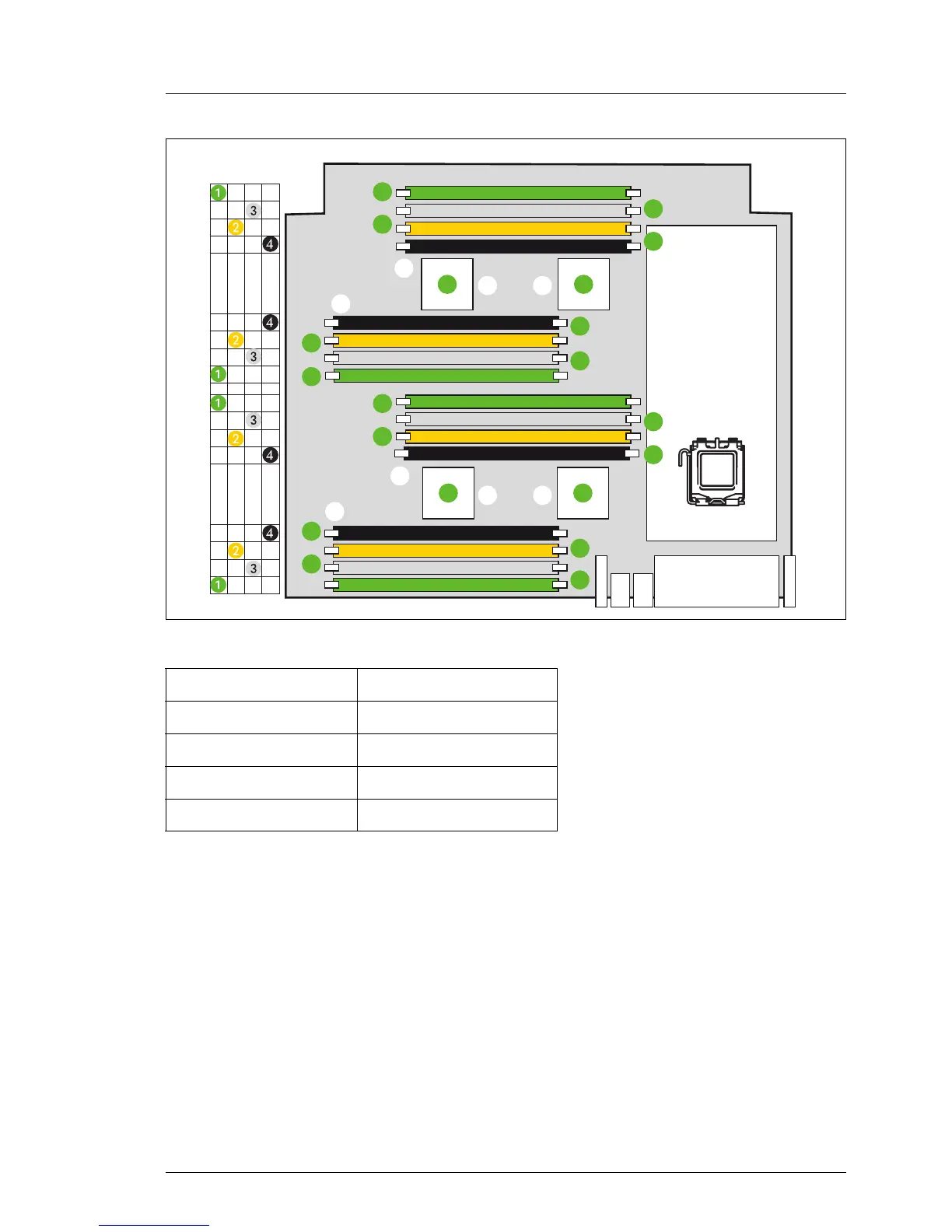

Figure 113: Population order for DIMM memory modules
I Only use identical DIMM memory modules in the minimum configuration.
Population order DIMM position
1 1B + 1D + 1F + 1H
2 1A + 1C+ 1E + 1G
3 2B + 2D + 2F + 2H
4 2A + 2C + 2E + 2G
Table 5: Population order for DIMM memory modules
