Ê Remove the slot lock by pulling the green handle upward (2), pushing the
plastic part down (3) and lifting the slot lock (4).
Ê Pull the removal tool out of the slot by the handle (5).
8.4.4 Removing the retaining plate

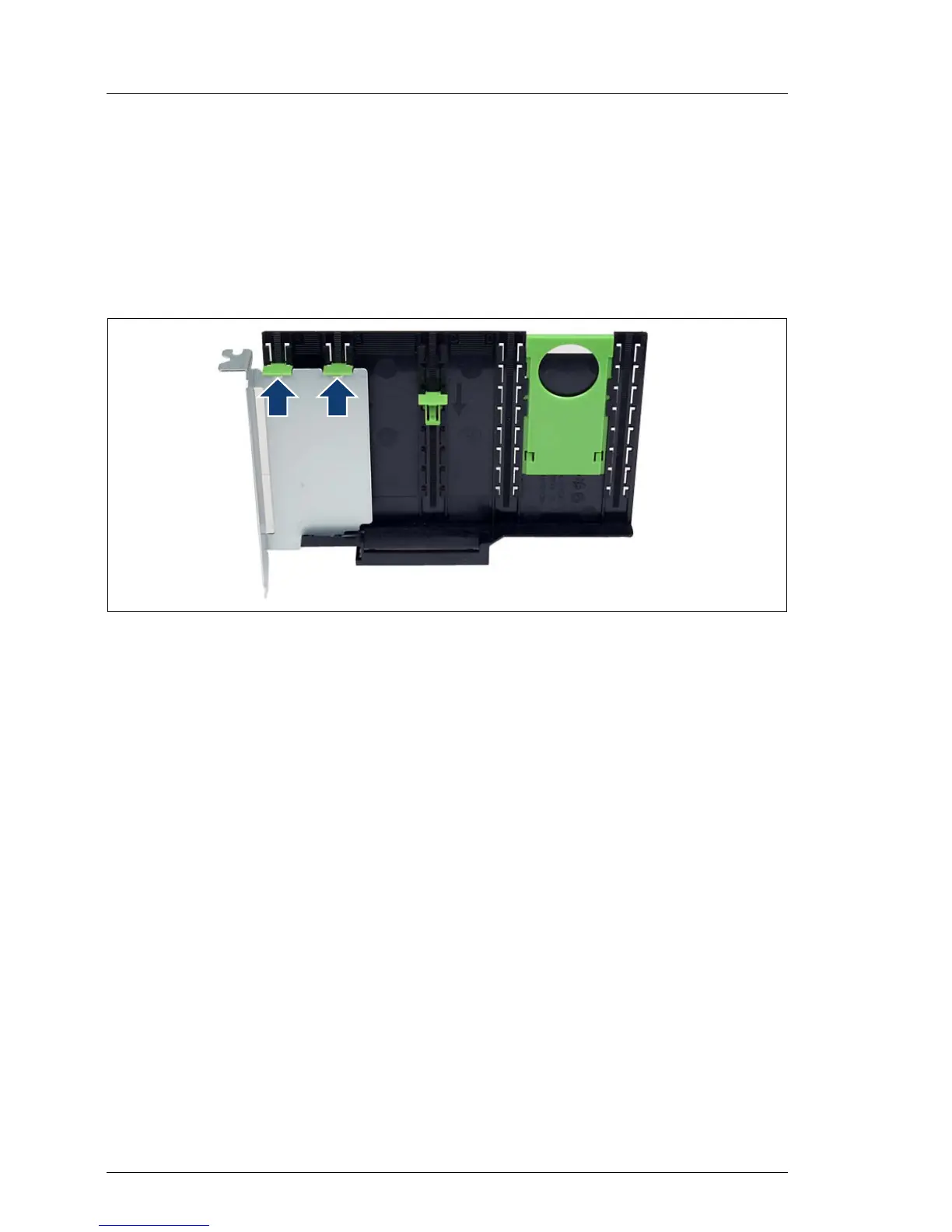

Figure 64: Removing the retaining plate from the removal tool
Ê Lift the green movable engaging hooks (see arrows) no more than
approximately 1 mm until the retaining plate is completely released.
V CAUTION!
The engaging hooks may easily be damaged if too much pressure is
applied.
Ê Take the retaining plate out and put it aside.
