Power supply
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12047-001.fm

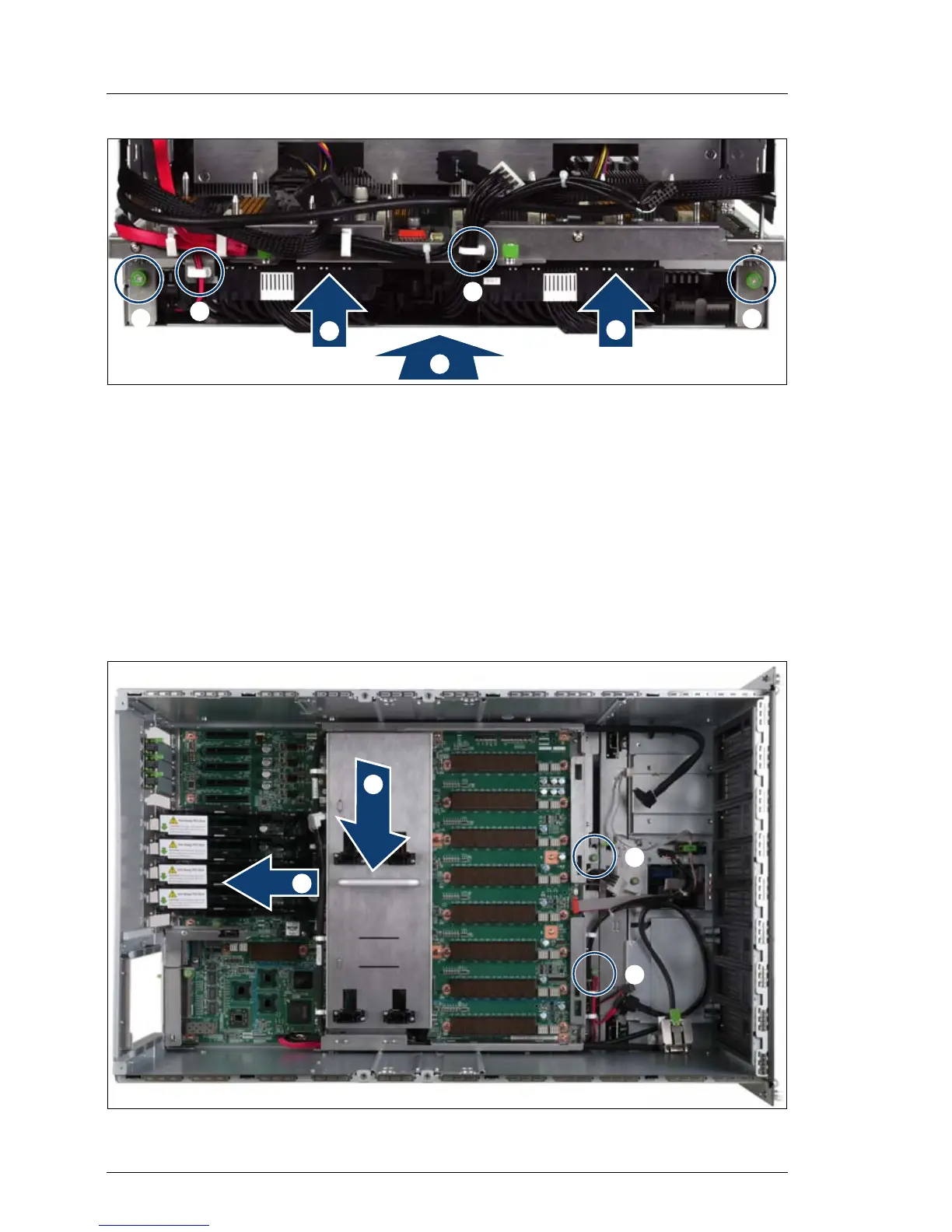

Figure 27: Installing the power distribution board
Ê Insert the power distribution board in the baseboard (1).
Ê Connect the power cables to the baseboard (2).
Ê Fasten the captive screws (3).
Ê Close the cable clamps (4).
5.4.11 Inserting the baseboard
Figure 28: Inserting the baseboard
/
0
0
11
2
2
0
/
1
1
