15.1.8 Inserting the fan cage

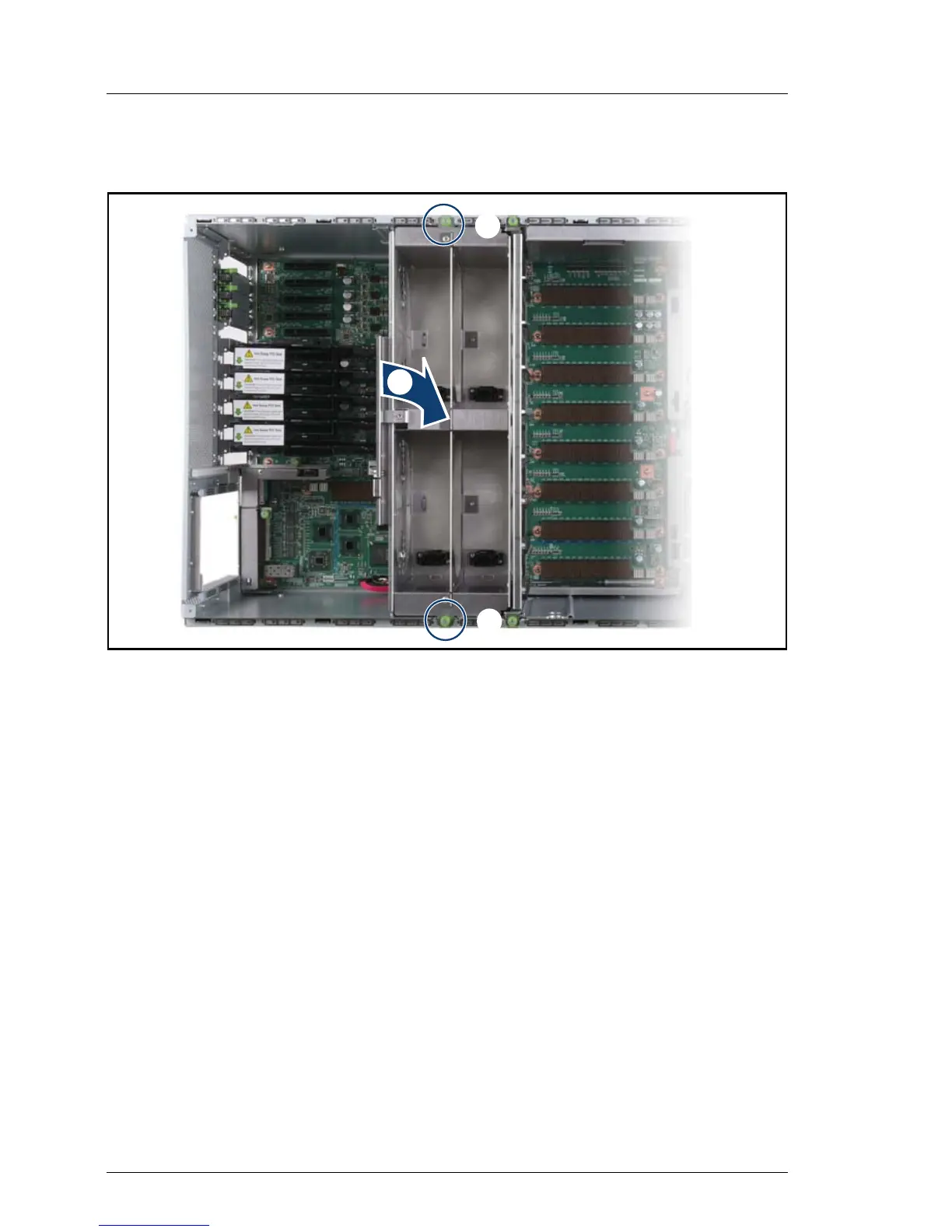

Figure 195: Inserting the fan cage
Ê Insert the fan cage in the bay (1).
Ê Fasten the captive screws (2).
15.1.9 Completing the task
Ê Perform the following procedures to complete the task:
1. Install the PCI Riser, see "Expansion cards and BBU" on page 105
2. Install all expansion cards and dummy modules in PCIe slots #8 to #17,
see "Expansion cards and BBU" on page 105
I Make sure that you reinstall each card in the slots it was located
before the replacement.
3. Install all CPUMEMRs, see "Removing the CPUMEMR" on page 190
I Make sure that you reinstall each CPUMEMR in the slot it was
located before the replacement.
