Fujitsu PRIMERGY RX900 S2 Upgrade And Maintenance Manual

46 Upgrade and Maintenance Manual RX900 S2
Basic procedures
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12046-001.fm
Ê Loosen the captive screw on the cover (see circle).
Ê Push the front cover back by approximately 1 cm.
Ê Remove the front cover by lifting it upward.
4.5.2 Removing the rear cover

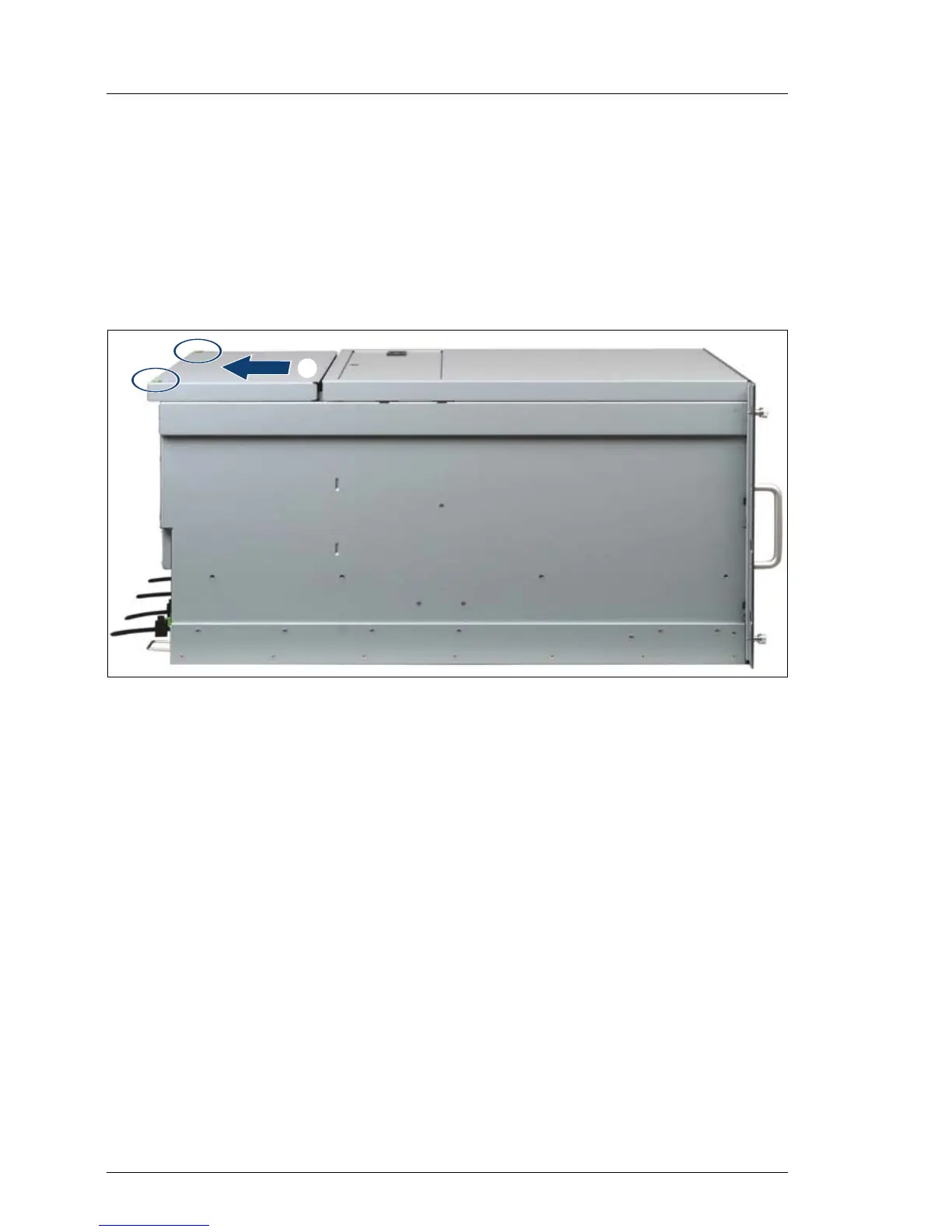

Figure 7: Removing the rear cover
Ê Loosen the captive screws on the rear cover (see circle).
Ê Push the rear cover back by approximately 1 cm.
Ê Remove the cover by lifting it upward.
/
0

Fujitsu PRIMERGY RX900 S2 Specifications

General

Brand	Fujitsu
Model	PRIMERGY RX900 S2
Category	Server
Language	English
