6.4.5 Sliding the optical drive outward

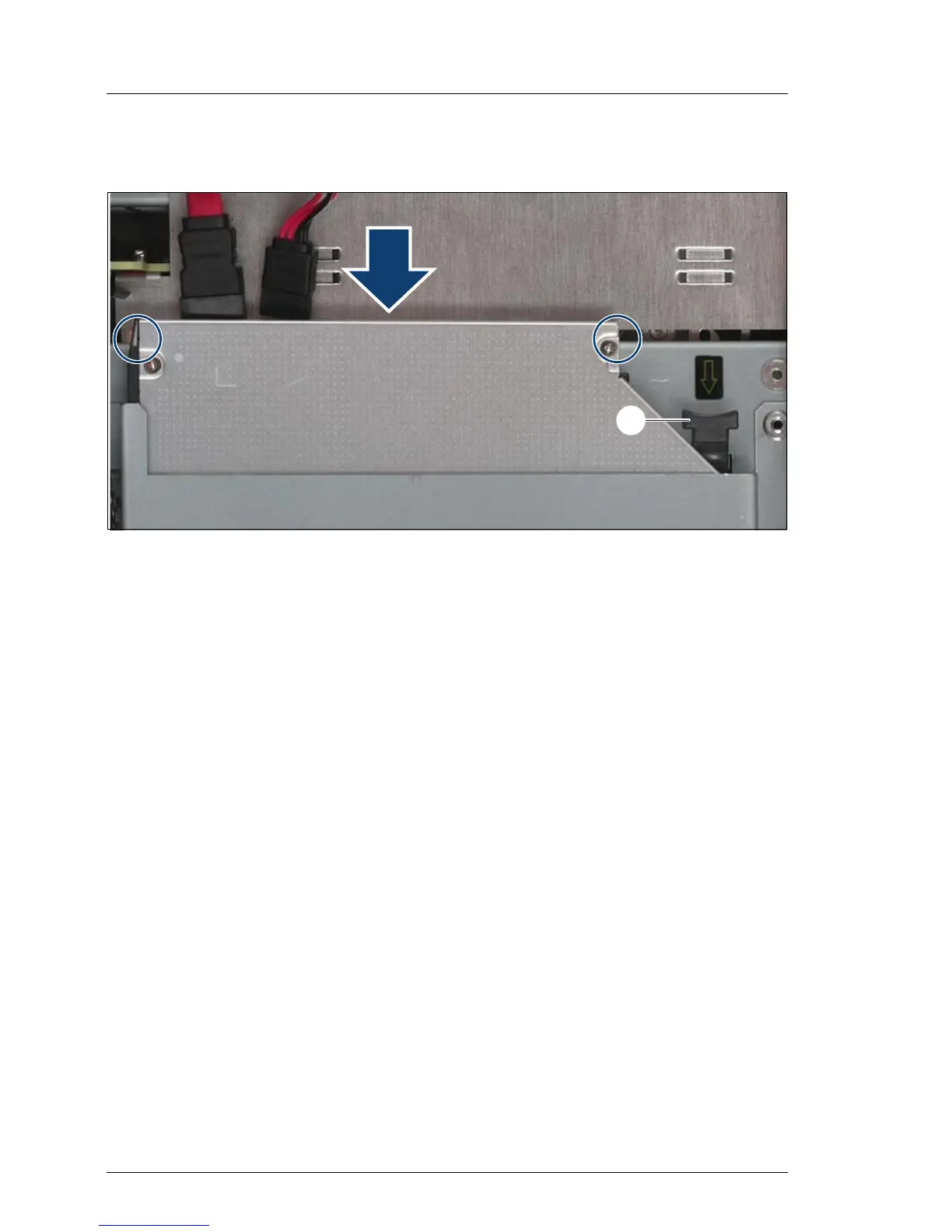

Figure 41: Sliding the optical drive outward
Ê Use the handle (A) to unlock the optical drive.
Ê Slide the optical drive outward a few centimeters so that you have free
access to the SAS backplane (see circles).
