104 Upgrade and Maintenance Manual RX900 S2
Fan modules
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12049-001.fm
7.1.5 Closing the fan cover

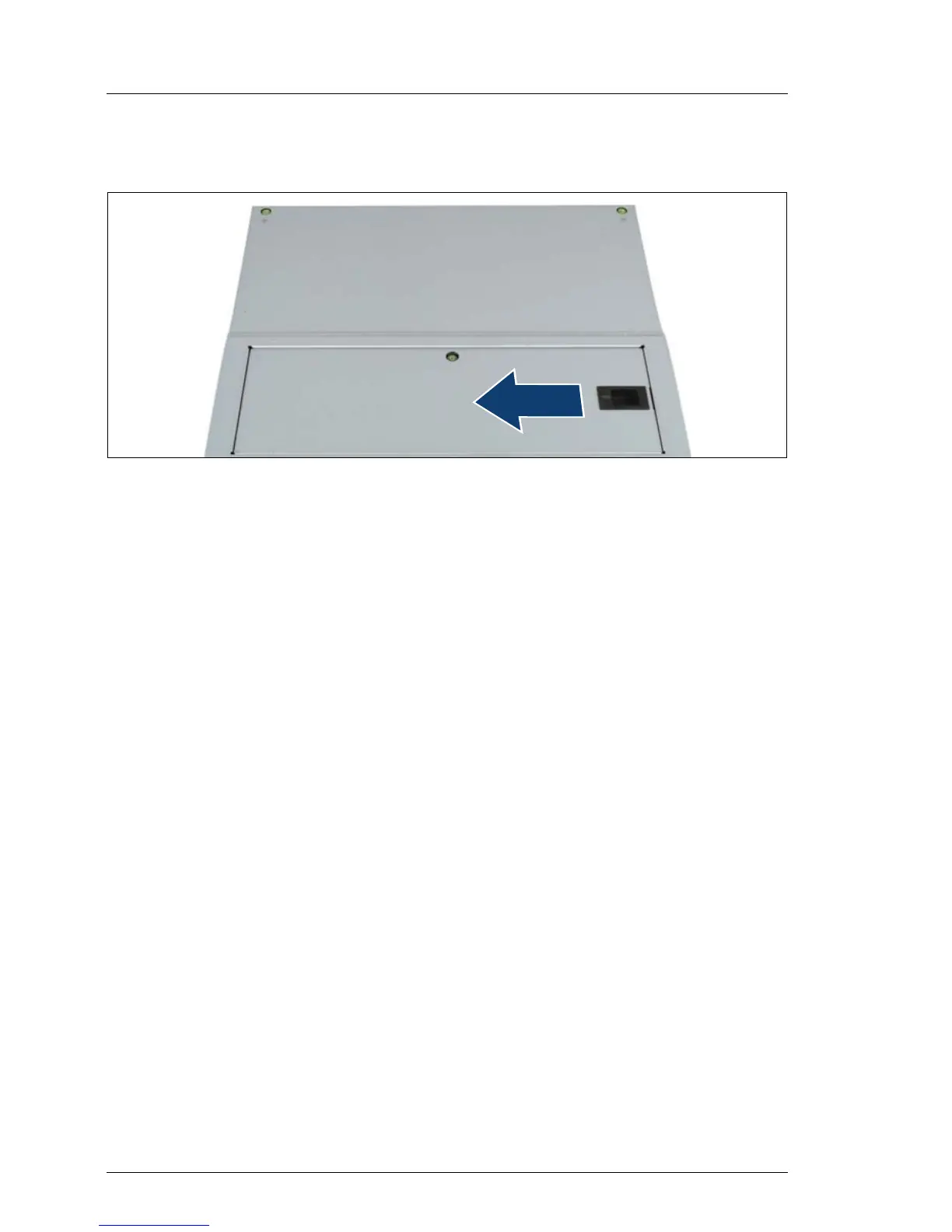

Figure 51: Closing the fan cover
Ê Press the handle in direction of the arrow and insert the fan cover into the
front cover.
7.1.6 Completing the task
Perform the following procedures to complete the task:
1. "Mounting the server in the rack" on page 49
2. "Closing the rack door" on page 51
