RX900 S2
Upgrade and Maintenance Manual
311
Cables

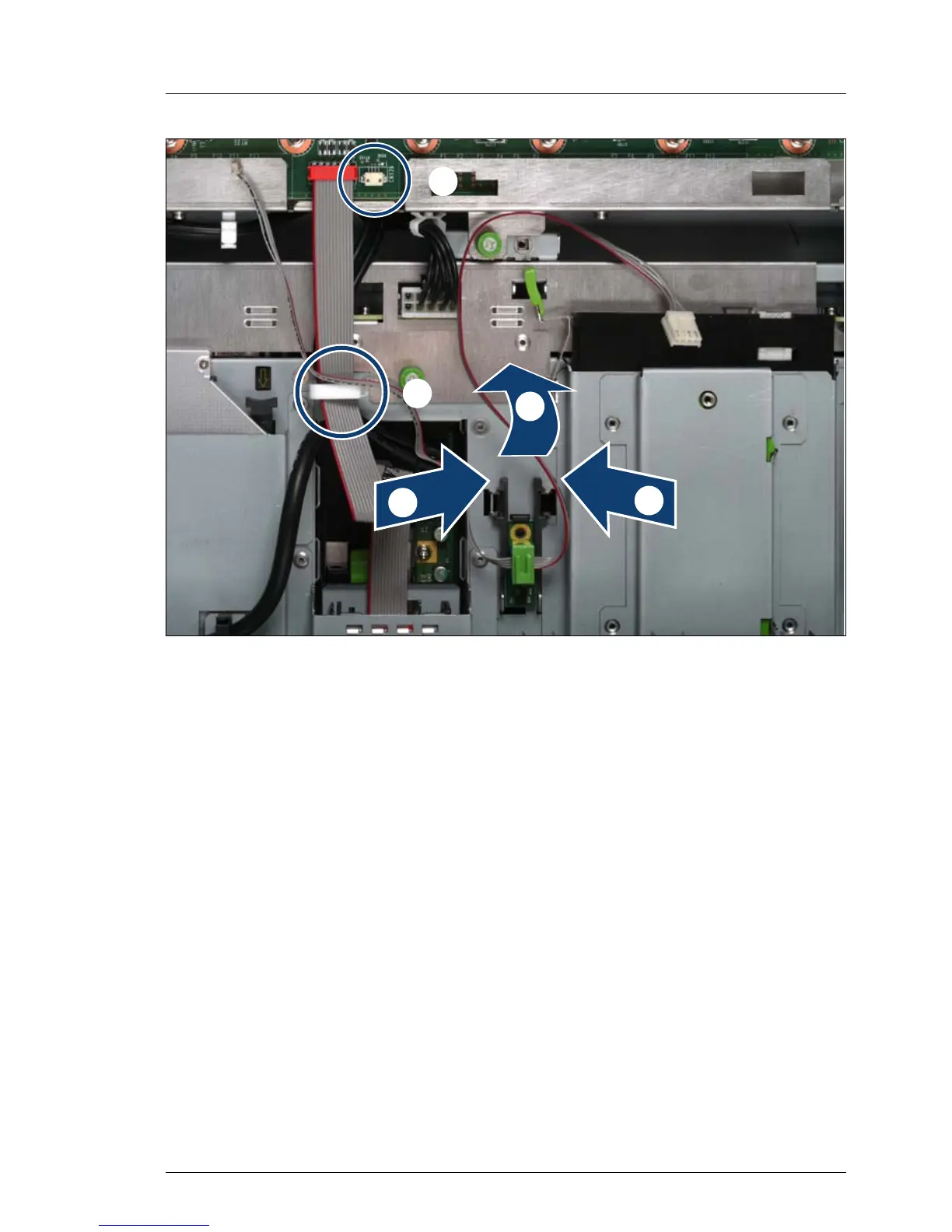

Figure 203: Removing the chassis ID board holder
Ê
Disconnect the chassis ID board cable from the
baseboard (1) and open the
cable clamp (2).
Ê
Press the plastic tongues of the chassis ID holder slightl
y inward as
indicated by the arrows (3).
Ê
Slide the chassis ID board holder outward (4).
1
/
1
1
0
2
310
312
