RX900 S2 Upgrade and Maintenance Manual 117
Expansion cards and BBU
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I If only one slot is equipped with a SFP+ transceiver module, use the
primary right connector as shown.

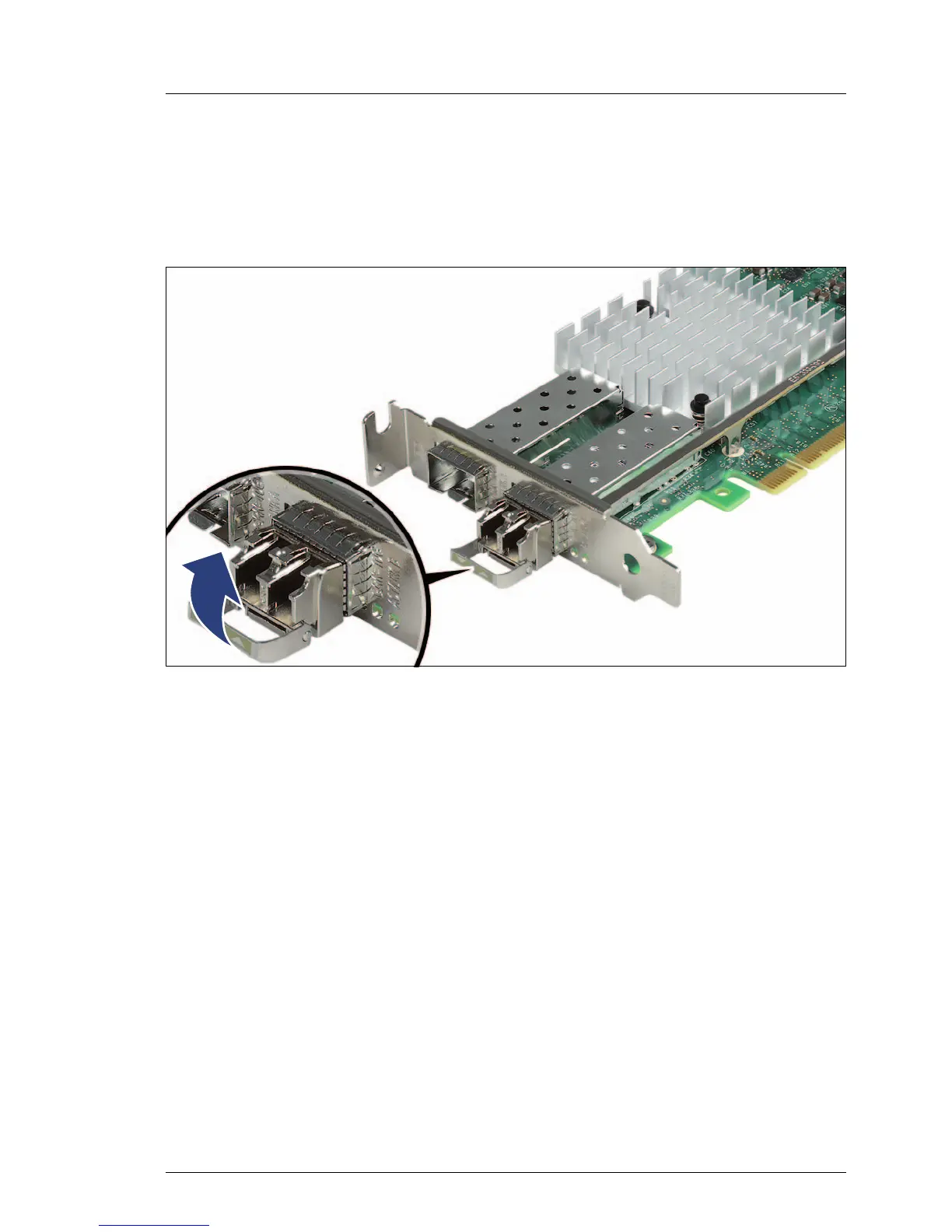

Figure 57: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
