Long expansion cards

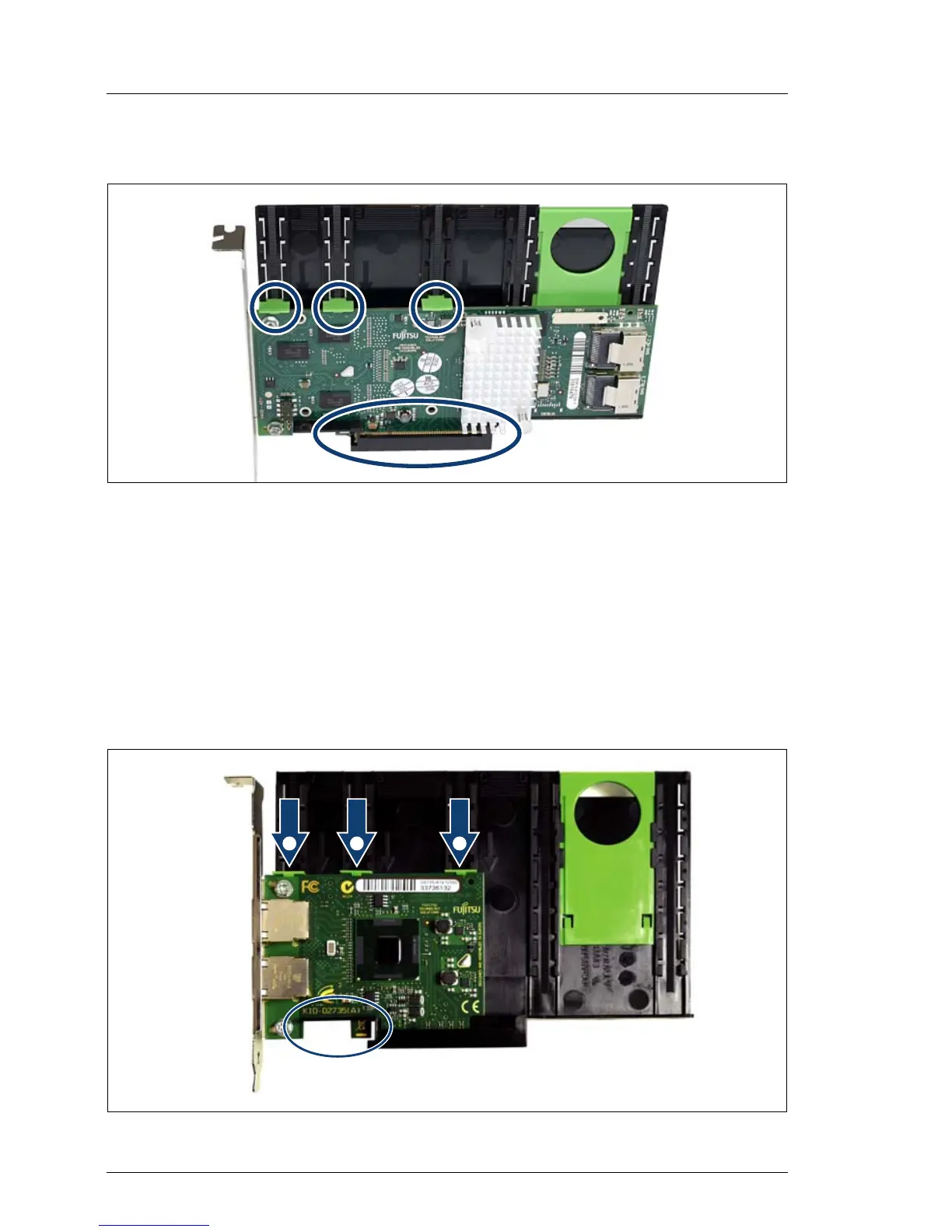

Figure 78: Inserting the expansion card in the removal tool
Ê Insert the expansion card in the slot of the removal tool.
Ê Insert the green engaging hooks in the rods and push them down until they
engage in the upper edge of the expansion card.
I Make sure that e.g. the ports on the expansion card are not blocked
by the engaging hooks.
Short expansion cards such as the network adapter D2735
Figure 79: Inserting a short expansion card in the removal tool
