RX900 S2
Upgrade and Maintenance Manual
235
Front panel and ext
ernal connectors
Ê
Press the locking handle (2) of the video connector downward.
Ê
Slide the video connector out of the front panel module (3).

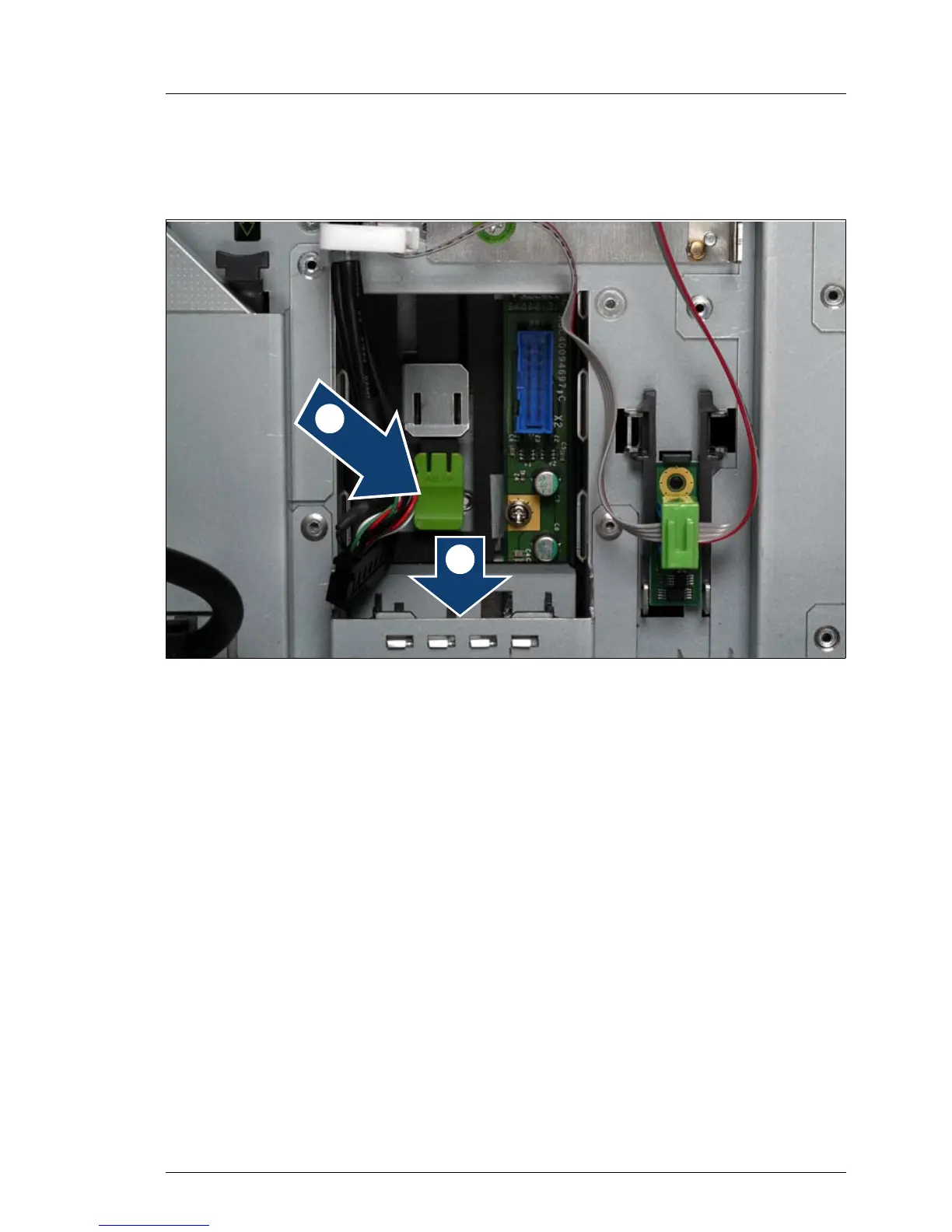

Figure 143: Removing the f
ront panel module
Ê
Press the locking handle (1) downward.
Ê
Push the front panel module outward (2).
