RX900 S2 Upgrade and Maintenance Manual 255
Management and diagnostics modules

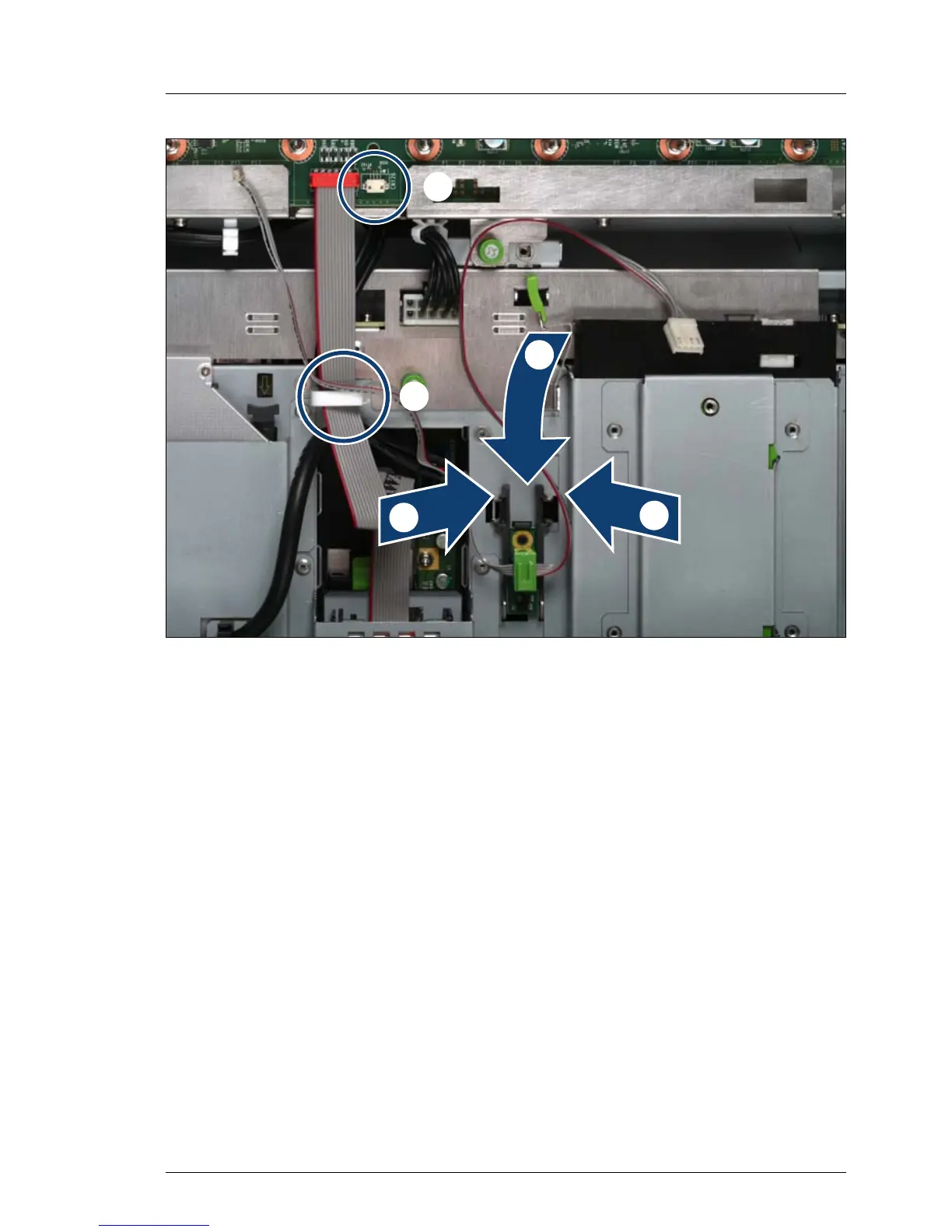

Figure 161: Installing the chassis ID board holder
Ê Press the plastic tongues of the chassis ID board holder slightly inward as
indicated by the arrows (1) and slide the chassis ID board holder inward until
it clicks into place (2).
Ê Connect the chassis ID board cable at the baseboard (3) and close the cable
clamp (4).
1
0
2
/
/
