270 Upgrade and Maintenance Manual RX900 S2
Baseboard
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12056-001.fm

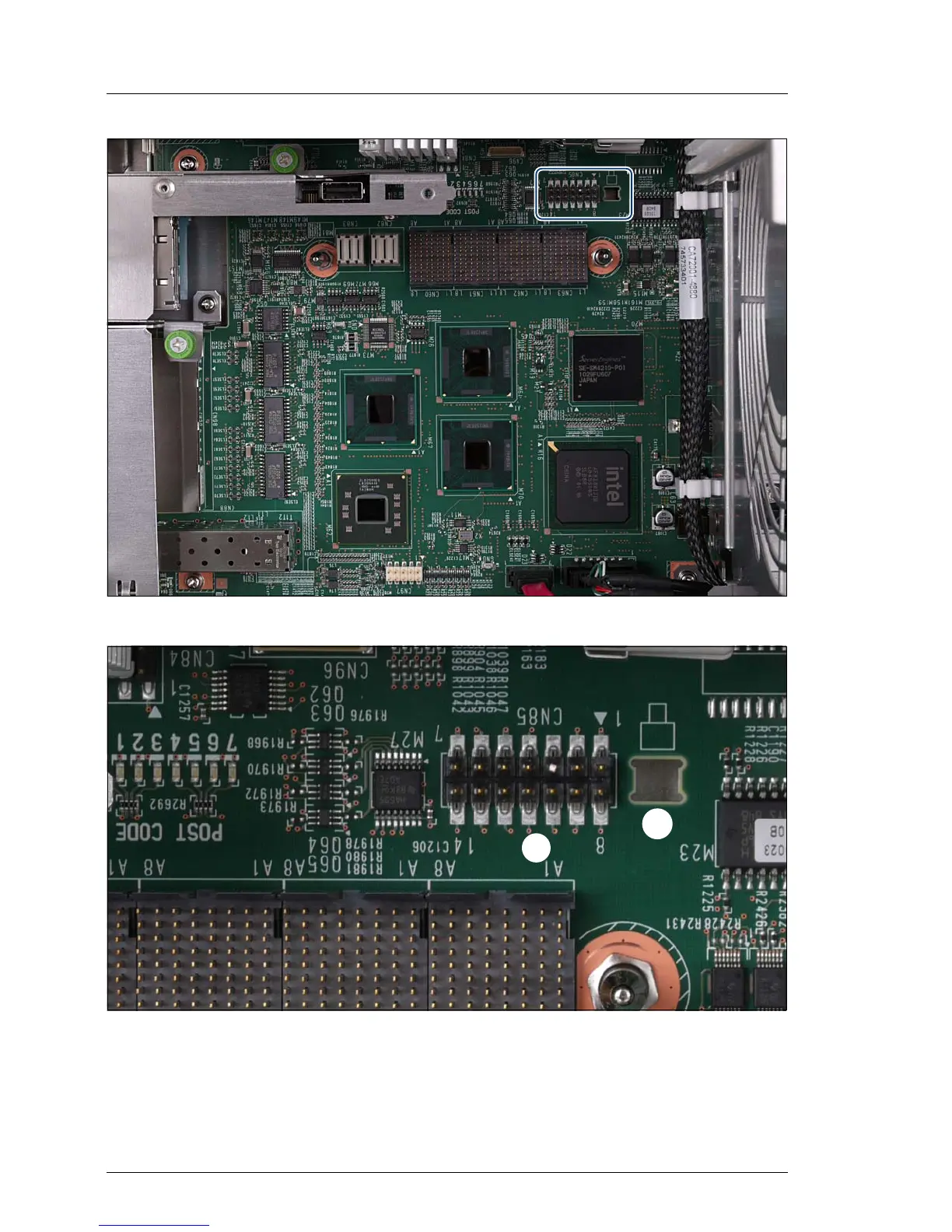

Figure 169: TPM mounting location
Figure 170: TPM mounting location (detail)
UFM mounting location on the system board:
1 TPM connector
2 Cut-out for TPM spacer
/
