5.3 Configuring Basic Settings for Measurement
87
5
Chapter 5 Setting Measurement Conditions

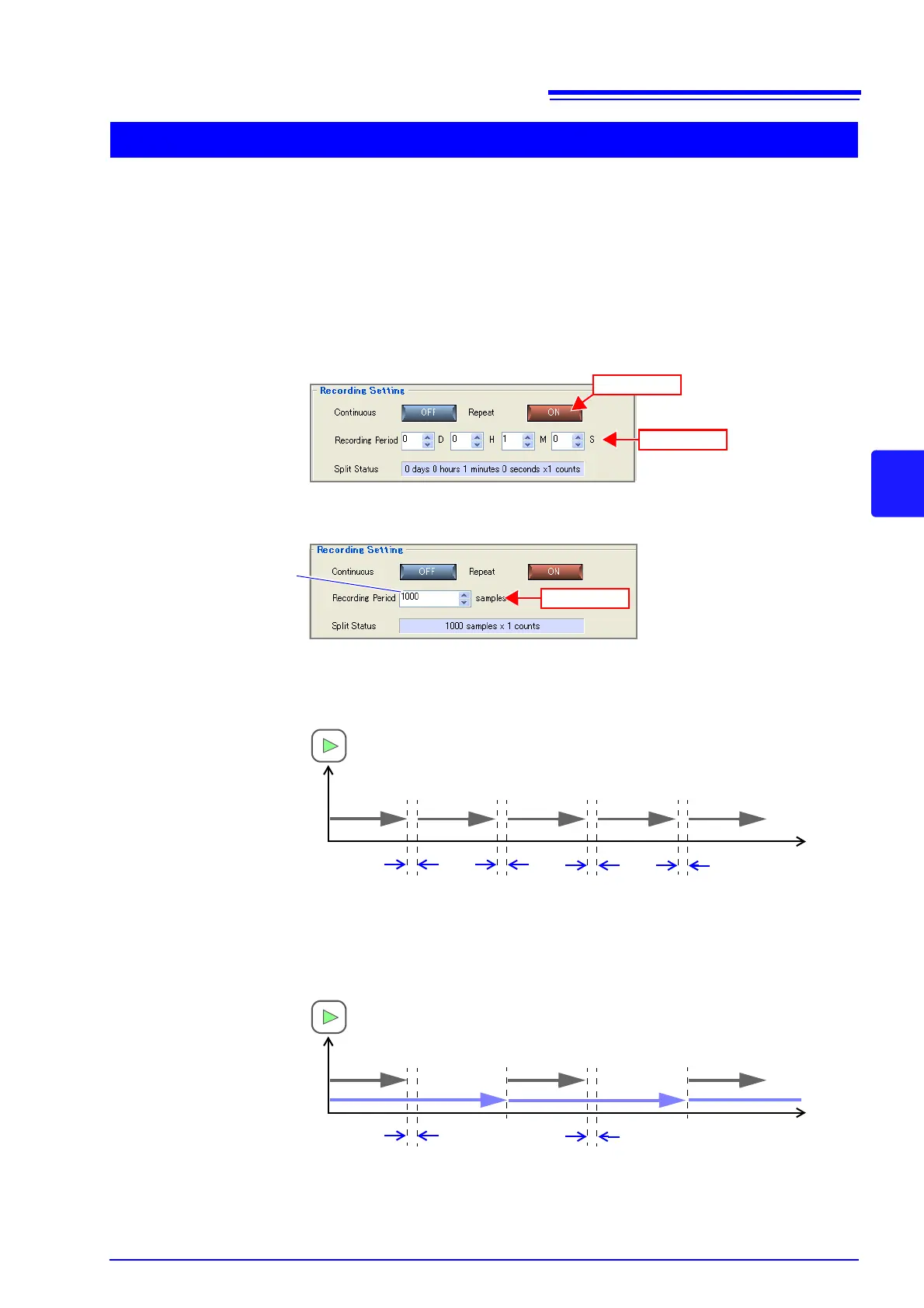

Measure while splitting data each recording period.
1. Set [Repeat] on the measurement settings page to ON.
Each click of the button toggles the setting ON and OFF.
2. Set the recording period.
In the case of normal sampling and dual sampling
In the case of external sampling
3. Start recording to measure data for the recording period length repeatedly
until measurement is stopped.
If you set a repeat measurement interval for timer measurement, it is possible to
repeat measurement while leaving a gap at a fixed interval as shown in the fig-
ure below.
Repeat Recording
Set
Maximum recording
(10,000,000
samples max.)
Recording
period
Data timer for saving
Time
Start button
Start button
Recording
period
Data timer for saving
Time
Repeat measurement
interval
