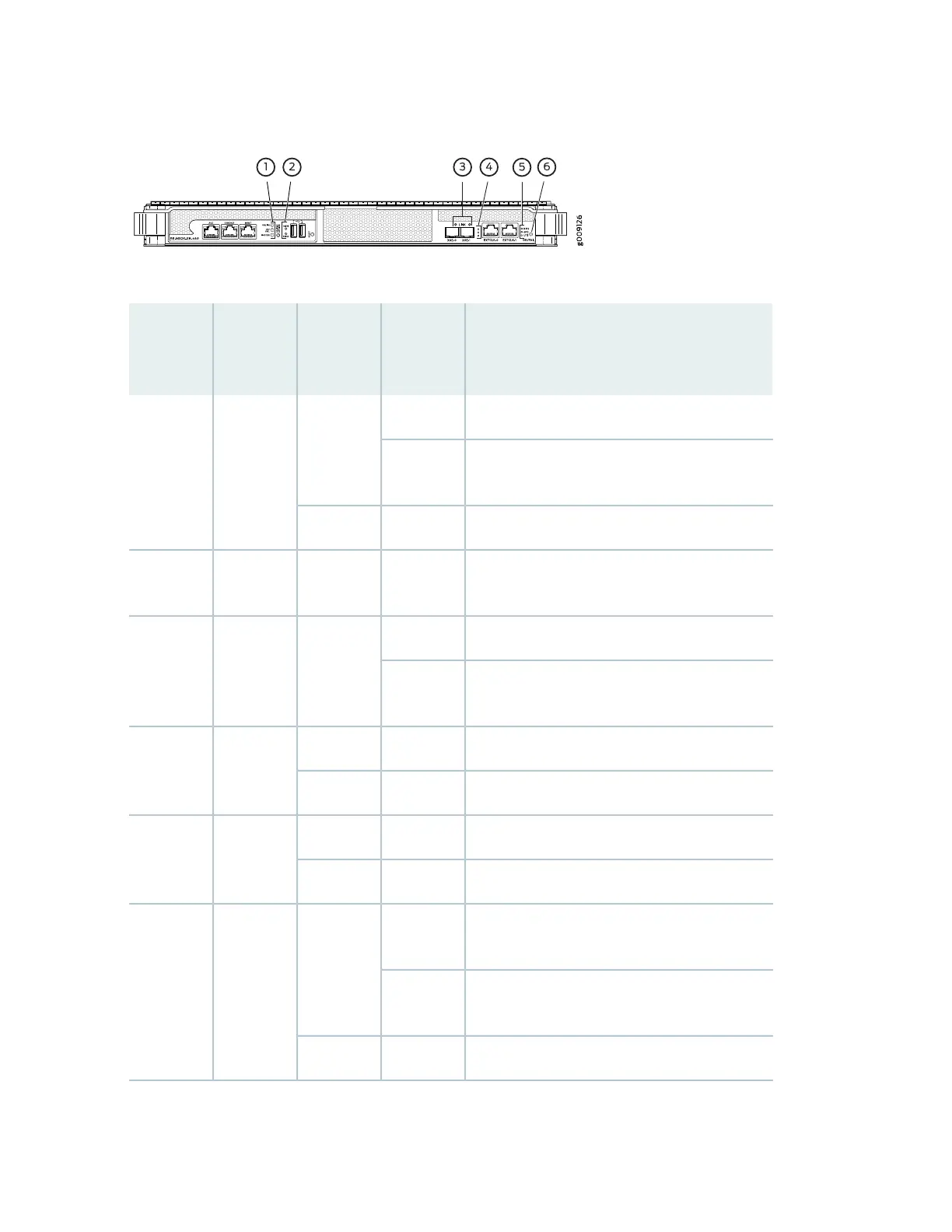

Figure 27: REMX2K-X8-64G CB-RE LEDs
Table 16: REMX2K-X8-64G CB-RE LEDs
DescriptionStateColorLabel
Callout
from
Figure27onpage58
CB-RE is transitioning online.BlinkingGreenONLINE1
CB-RE is functioning normally.On
steadily
CB-RE is offline.Off—
CB-RE is the master.On
steadily
BlueMASTER1
RE is functioning normally.OffYellowOK/FAIL10
RE has failed.On
steadily
Indicates presence of disk activity.BlinkingGreenDISK12
There is no disk activity.Off-
Indicates presence of disk activity.BlinkingGreenDISK22
There is no disk activity.Off-
SFP+ ports (XGE0 and XGE1) links are active.On
steadily
GreenLINK3
Activity on the SFP+ ports (XGE0 and XGE1).Blinking
steadily
No link.OnYellow
58
