Keithley 2461 Reference Manual

Section
3: Functions and features Model 2461 Interactive SourceMeter® Instrument
Reference Manual
3-44 2461-901-01 A/November 2015
Storing configuration index 1
Use one of the following methods to:
• Set the instrument source function to voltage
• Set the instrument source range to 20 V
• Set the instrument source limit to 2.0 V
• Store all active source settings to MySourceList as configuration index 1 by appending to the
end of the initially empty list
Using SCPI commands:
:SOURce:FUNC VOLTage
:SOURce:VOLtage:RANGe 20
:SOURce:VOLTage:LEVel 2
:SOURce:CONF:LIST:STORe "MySourceList"
Using TSP commands:
smu.source.func = smu.FUNC_DC_VOLTAGE
smu.source.range = 20
smu.source.level = 2
smu.source.configlist.store("MySourceList")

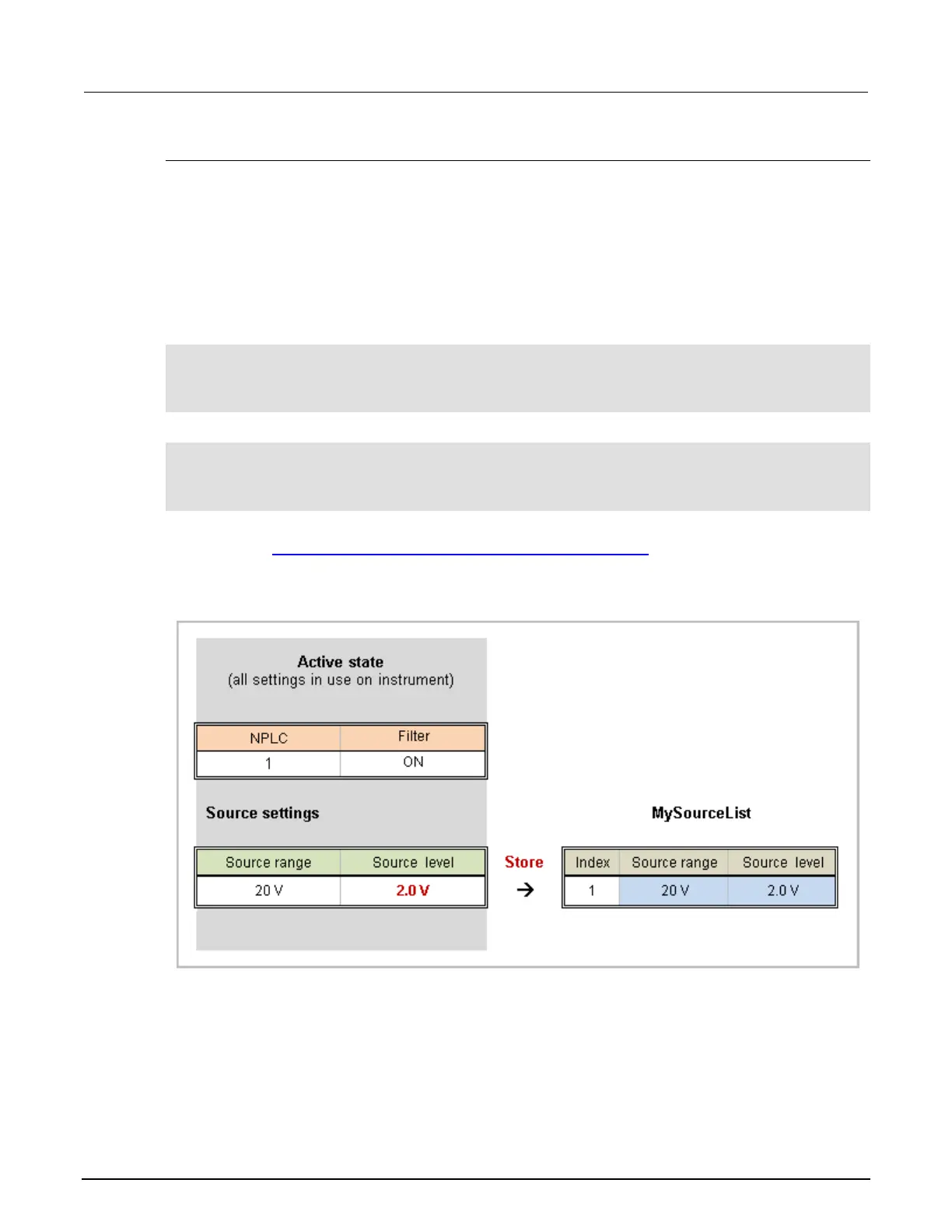

The following figure shows the active state of the instrument after you change the source level to
2.0 V. Refer to Instrument settings stored in a source configuration list (on page 3-35) for a complete
list of source settings that the instrument stores in a source configuration list.
Figure 106: Example configuration point 1

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
