Keithley 2461

Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2461-901-01 A/November 2015 3-45
Storing configuration index 2
Use one of the following methods to:
• Set the instrument source level to 3.0 V
• Store all active source settings to MySourceList as configuration index 2 by appending to the
end of the list
Using SCPI commands:
:SOURce:VOLTage:LEVel 3
:SOURce:CONF:LIST:STORe "MySourceList"
Using TSP commands:
smu.source.level = 3
smu.source.configlist.store("MySourceList")

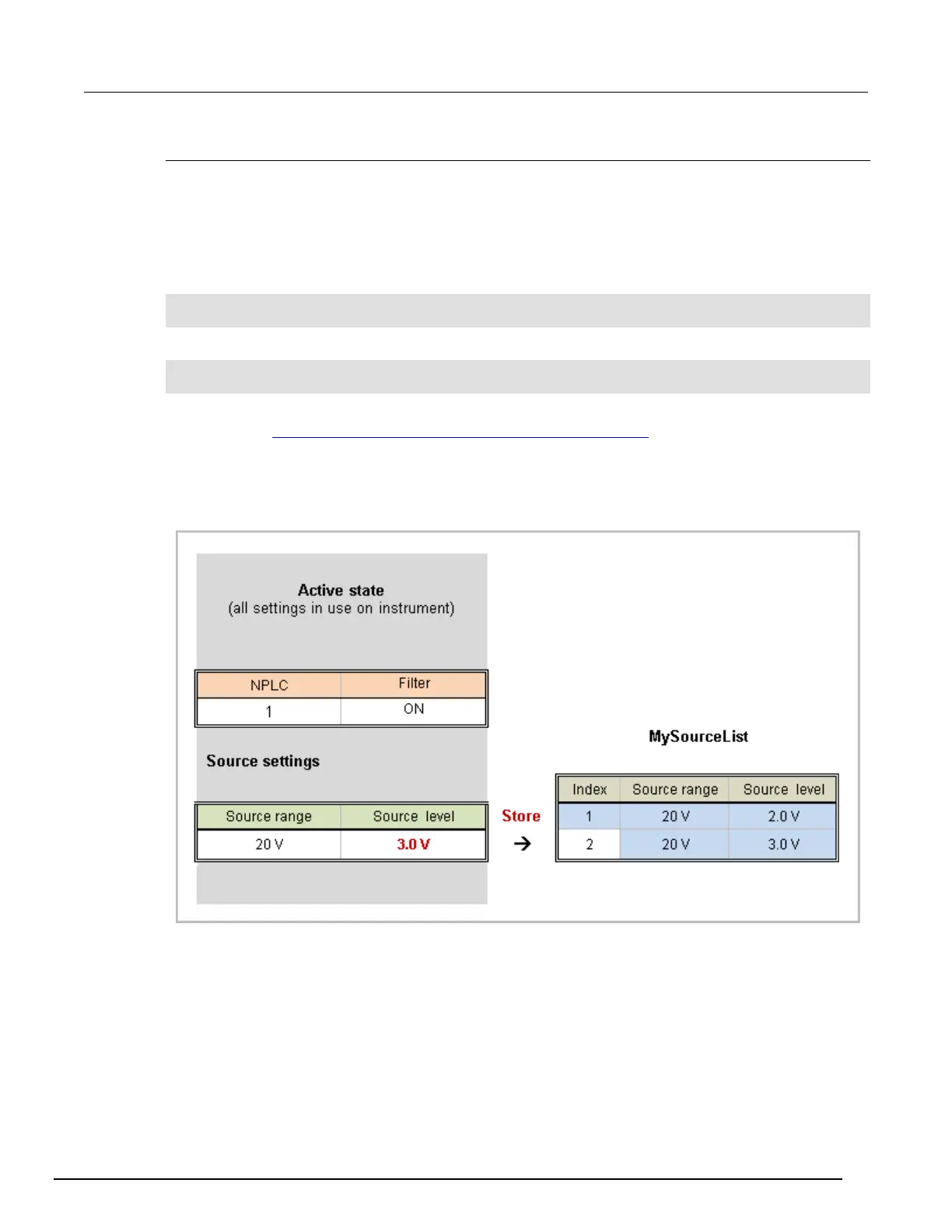

The following figure shows the active state of the instrument after you change the source level to
3.0 V. Refer to Instrument settings stored in a source configuration list (on page 3-35) for a complete
list of source settings that the instrument stores in a source configuration list.
Figure 107: Example configuration point 2
