Keysight E4980A User Manual

Keysight E4980A/AL Precision LCR Meter 199
Measurement Procedure and Examples
Measurement Contacts
Contact Resistance
Contact resistance between the contacting terminals and the DUT causes
measurement error when measuring large values of capacitance, especially in
D (dissipation factor) measurements.
When measuring large capacitance values, the four-terminal measurement
contacts have the advantage of less measurement error as compared to the
two-terminal method. Select a test fixture which can hold the DUT tightly to
stabilize the connection.

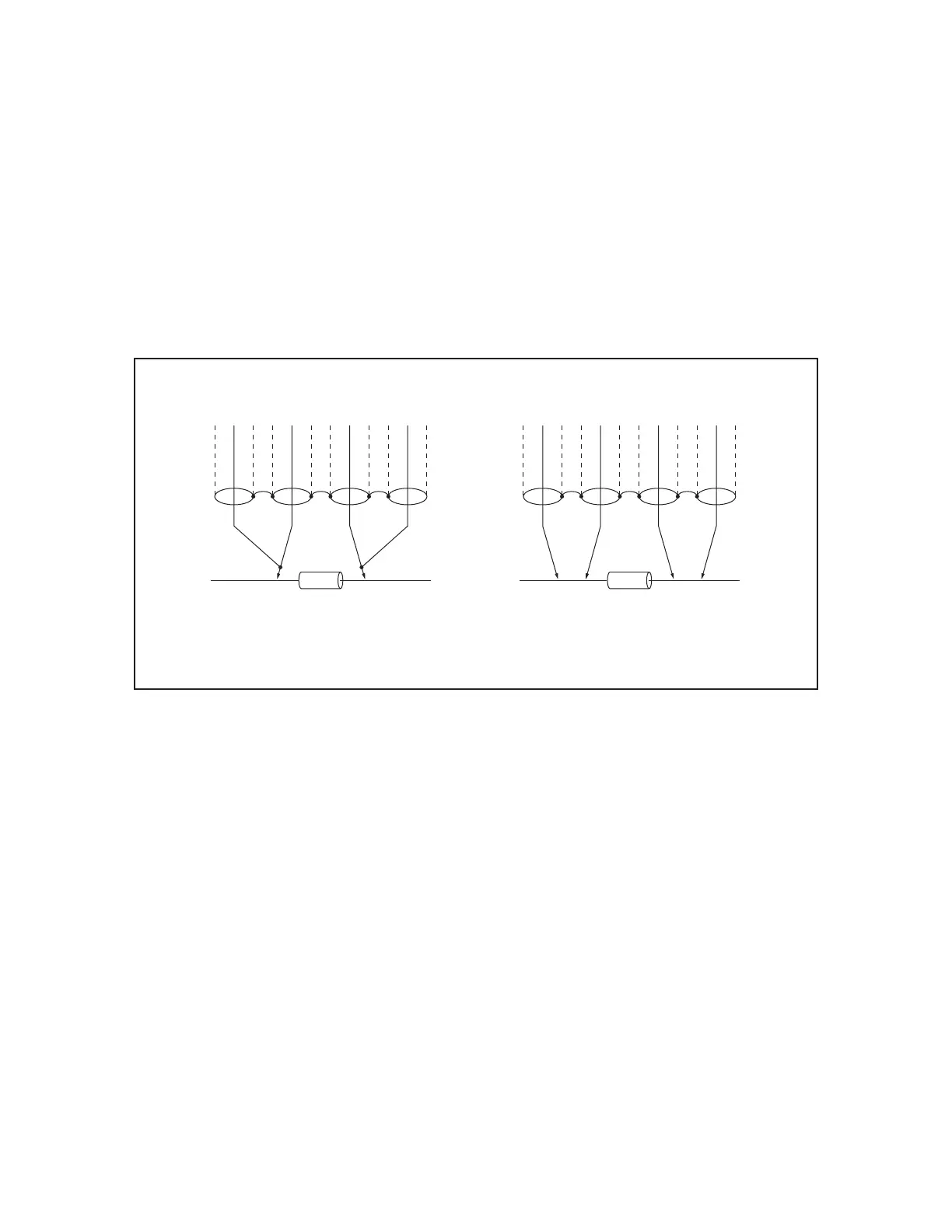

Figure 7-11 Contact resistance
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪇㪏㪎
DUT
LCUR LPOT HPOT HCUR
(A) Two-Terminal Method
DUT
LCUR LPOT HPOT HCUR
(A) Four-Terminal Method

Keysight E4980A Specifications

General

Frequency Range	20 Hz to 2 MHz
Basic Accuracy	0.05%
DC Bias Voltage	0 V to ±40 V
Measurement Functions	L, C, R, Z, D, Q
DC Bias Current	0 A to 20 mA (using external DC bias source)
Display	LCD
Interface	LAN, USB, GPIB
Dimensions	426 mm (W) x 177 mm (H)
Weight	13.5 kg
