162 Keysight E4980A/AL Precision LCR Meter
System Configurations
SELF TEST Page
5-
SELF TEST Page
Pressing the [System] key followed by the SELF TEST softkey opens the SELF
TEST page. The SELF TEST page, intended for maintenance and repair, allows
you to check the behavior of the E4980A/AL. You can choose one of available
test items with the cursor placed in the corresponding field (denoted in
parentheses).
Choosing a Test Item (TEST No. field)

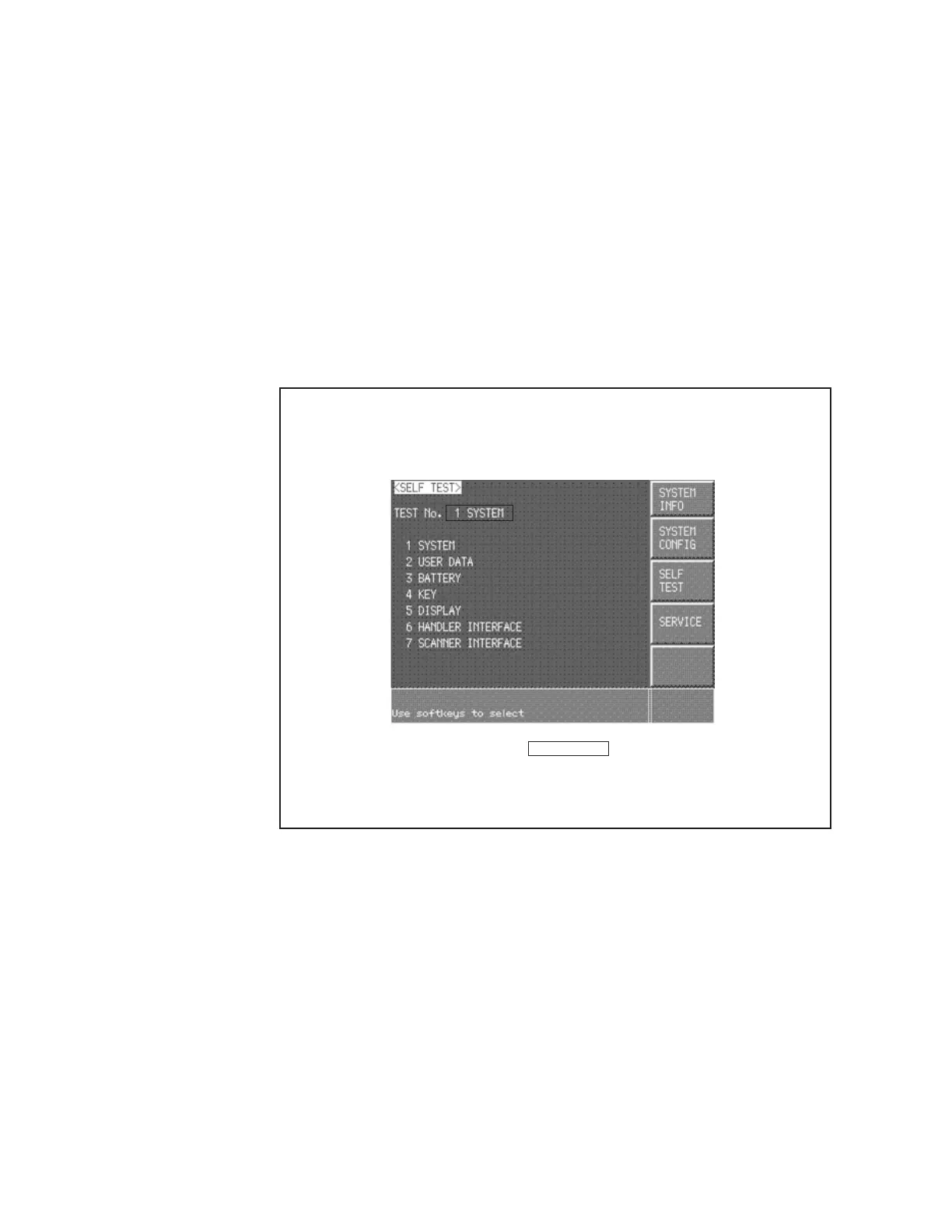

Figure 5-3 shows the fields available on this page along with their
corresponding softkeys.
Figure 5-3 SELF TEST Page
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪈㪋㪍
㪑㩷㩷㪝㫀㪼㫃㪻
