Keysight E4980A/AL Precision LCR Meter 171
Save/Recall
Saving/Recalling Instrument Configuration States

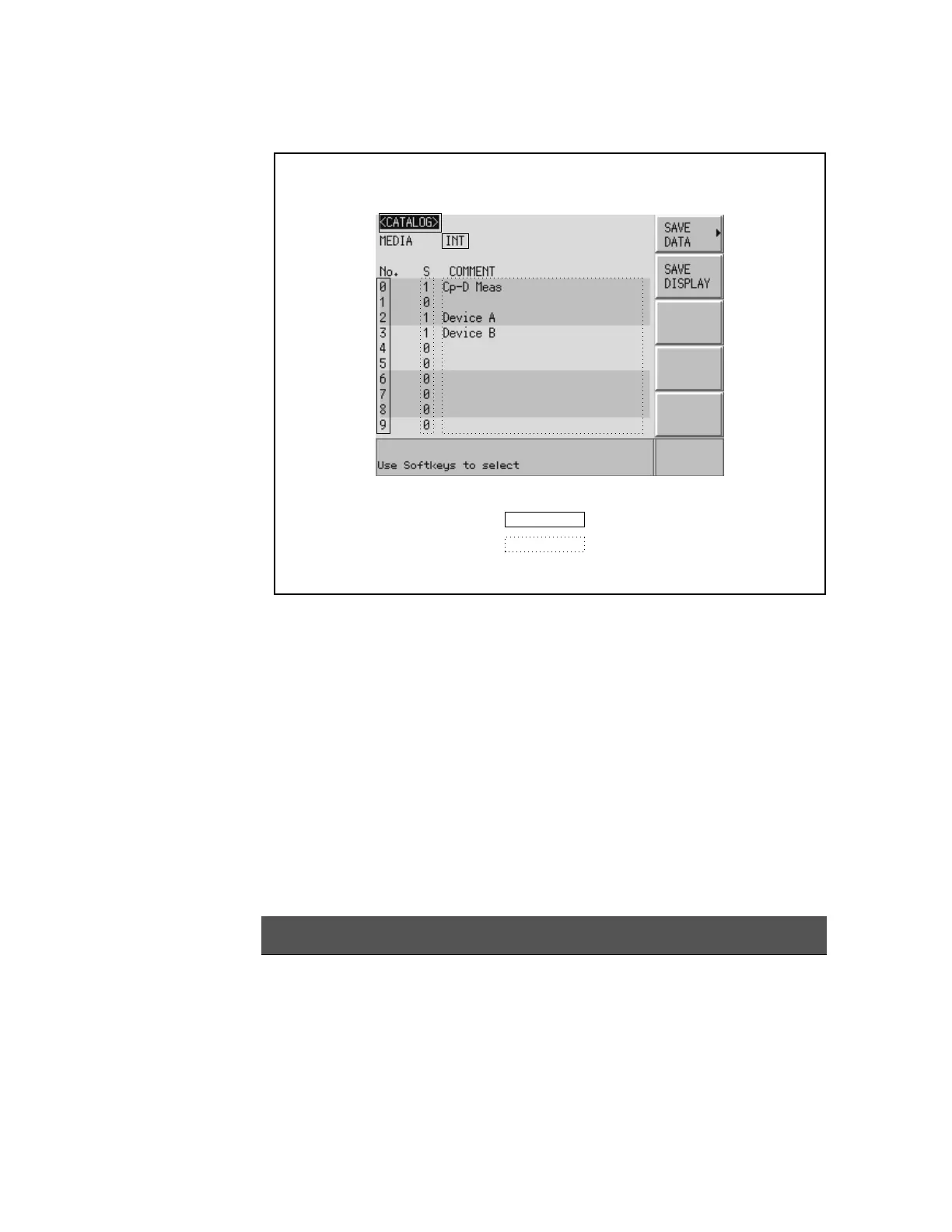

Figure 6-2 CATALOG page
Medium Mode
Functional Description
You have to specify the medium type of the destination or source before saving
or recalling instrument configurations.
To select the medium mode:
Step 1. Press [Save/Recall].
Step 2. Use the cursor keys to select the MEDIA field.
Step 3. Select the medium mode by pressing the appropriate softkey:
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪈㪋㪇
㪑㩷㩷㪝㫀㪼㫃㪻
㪑㩷㩷㪤㫆㫅㫀㫋㫆㫉
Softkey Description
INT Uses the internal memory as the destination or source. Once you
have selected this mode, the register numbers (in the No. field)
change to 0 through 9.
EXT Uses USB memory as the destination or source. Once you have
selected this mode, the register numbers (in the No. field) change to
10 through 19.
