LAN remote control system
The LAN (Local Area Network) remote control system provides two methods:
controlling the E4980A/AL using the SICL-LAN server and controlling the
E4980A/AL using the telnet server.
System configuration
Use a LAN cable to connect the E4980A/AL to the external controller
(computer). Figure 8-2 shows an overview of the LAN remote control system’s
configuration.

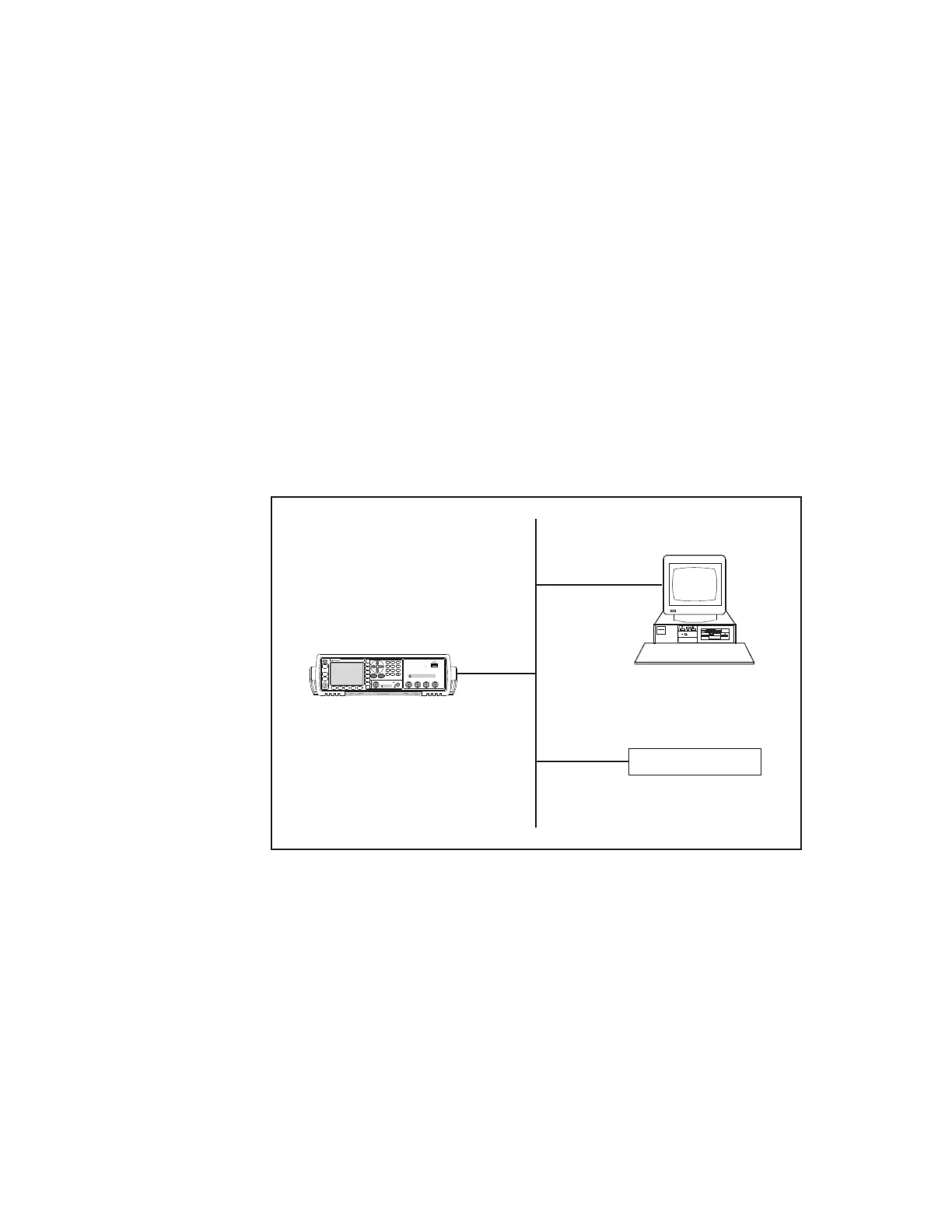

Figure 8-2 Configuration of the LAN remote control system
Required Equipment
1. E4980A/AL
2. External controller (personal computer or workstation that can be
connected to a LAN and with Keysight I/O Libraries Suite installed)
3. Other devices (other instruments and/or peripherals that serve your
purpose)
4. LAN cable for connecting the E4980A/AL with the external controller
