Rear Panel: Names and Functions of Parts
Rear Panel: Names and Functions of Parts
This section describes the names and functions of the parts on the
E4980A/AL’s rear panel.

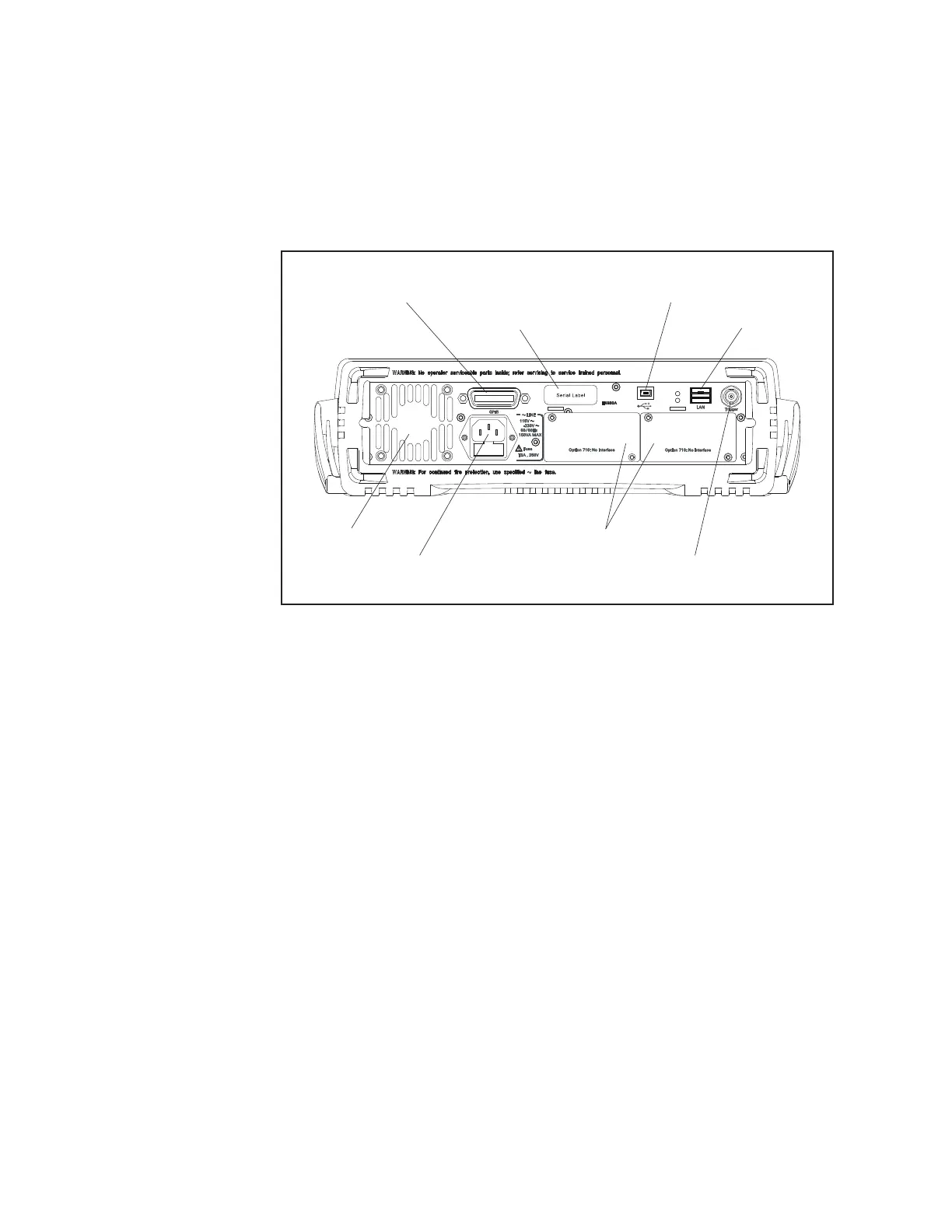

Figure 2-2 Rear panel
1. GPIB Interface Connector
General Purpose Interface Bus (GPIB). The connection of an external controller
and other devices through this connector allows you to configure an automatic
measurement system.
2. Interface Connector
If interface options are installed, the interface connectors will be installed as
shown. If the E4980A/AL is not equipped with an interface option, blank panels
will cover this portion.
Interfaces with which the E4980A/AL can be equipped as options are shown
below.
Handler interface (Option E4980A/AL-201)
This interface is for data exchange with an automatic machine (handler) used
on a production line.
Connector type: 36-pin Centronics
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪇㪇㪎
㪏㪅㩷㪝㪸㫅
㪍㪅㩷㪪㪼㫉㫀㪸㫃㩷㪥㫌㫄㪹㪼㫉㩷㪧㫃㪸㫋㪼
㪎㪅㩷㪧㫆㫎㪼㫉㩷㪚㪸㪹㫃㪼㩷㪩㪼㪺㪼㫇㫋㪸㪺㫃㪼 㪌㪅㩷㪜㫏㫋㪼㫉㫅㪸㫃㩷㪫㫉㫀㪾㪾㪼㫉
㩷㩷㩷㩷㪠㫅㫇㫌㫋㩷㪚㫆㫅㫅㪼㪺㫋㫆㫉
㪋㪅㩷㪣㪘㪥㩷㪧㫆㫉㫋
㪊㪅㩷㪬㪪㪙㩿㪬㪪㪙㪫㪤㪚㪀㩷㪠㫅㫋㪼㫉㪽㪸㪺㪼㩷㪧㫆㫉㫋
㪉㪅㩷㪠㫅㫋㪼㫉㪽㪸㪺㪼㩷㪚㫆㫅㫅㪼㪺㫋㫆㫉
㪈㪅㩷㪞㪧㪠㪙㩷㪚㫆㫅㫅㪼㪺㫋㫆㫉
