Keysight E4980A User Manual

Keysight E4980A/AL Precision LCR Meter 175
Save/Recall
Saving/Recalling Instrument Configuration States
Saving/Recalling Instrument Configuration States into/from USB Memory
Figure 6-4 shows the fields available on this page along with the softkeys
corresponding to them.

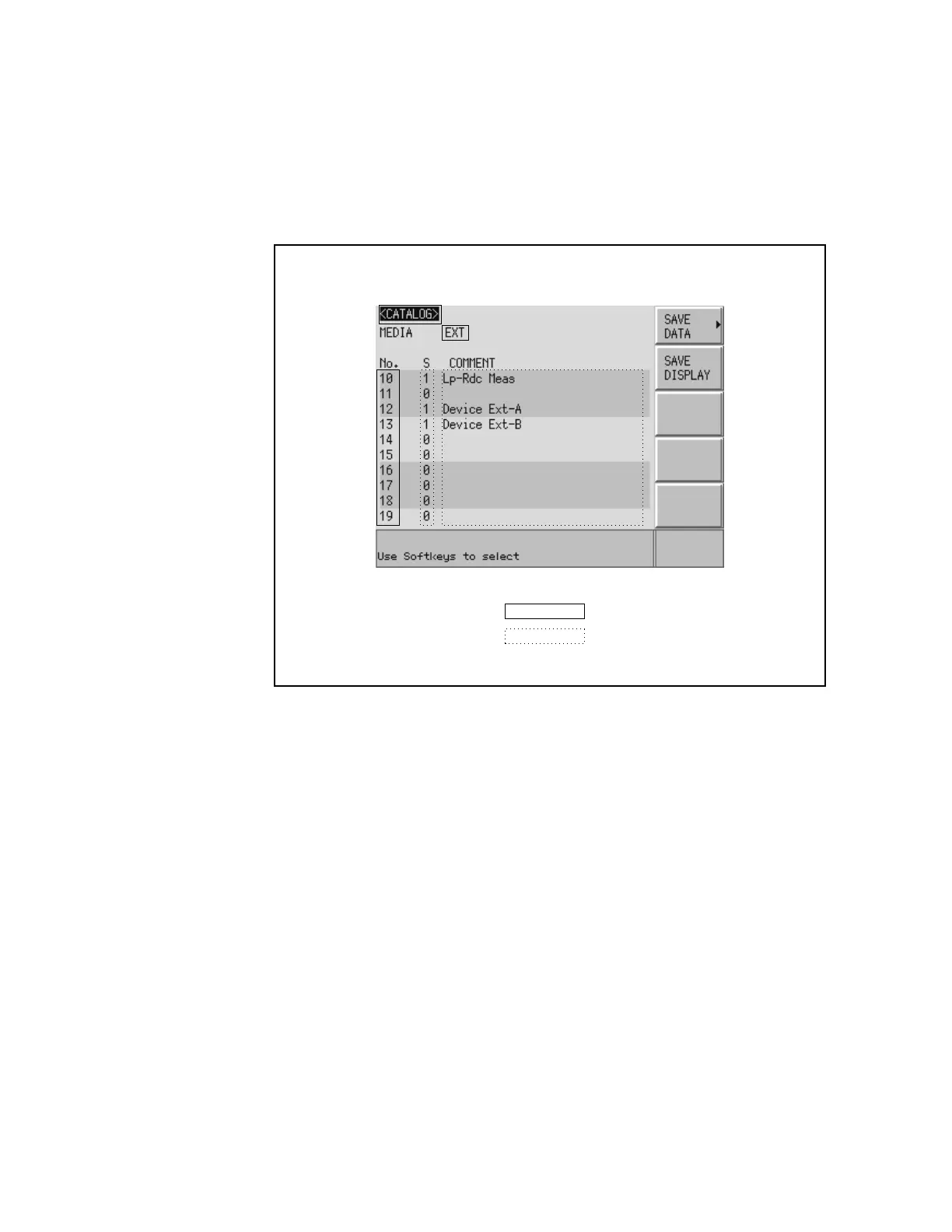

Figure 6-4 CATALOG page (when saving instrument configurations into USB memory)
Functional Description
When you save configuration states into USB memory, they are saved as
predefined files in predefined locations. You cannot manually define the file
names or locations.
Each state file is assigned a file name in the format of “register number.sta”.
To save configuration states into USB memory:
Step 1. Press [Save/Recall].
Step 2. Use the cursor keys to select the MEDIA field.
Step 3. Press the EXT softkey.
Step 4. Use the cursor keys to select the No. field (10 through 19) for your desired
register.
