Scanner Interface
Electrical Characteristics of the Input/Output Signals
Control Output Signals
The /INDEX and /EOM signals have optocoupled open collector outputs. The
combination of pull-up resistor and pull-up voltage must result in a current
through the optocoupler of less than 6 mA (Refer to Table F-10).

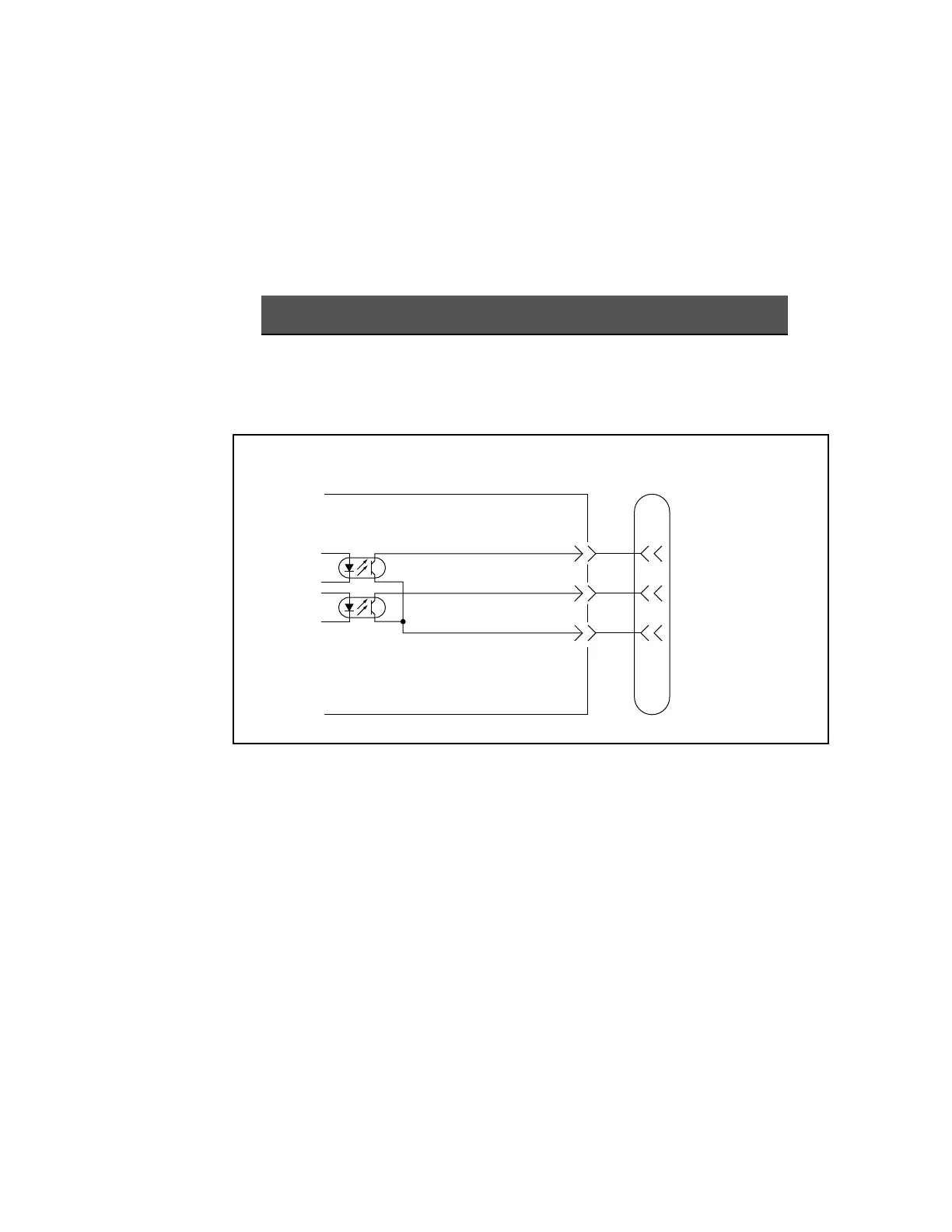

Figure F-8 shows a schematic of the /INDEX and /EOM output circuits.
Figure F-8 Simplified diagram of the output circuits
Table F-10 Output signal electrical characteristics
Signal Name External Pull-up Voltage Maximum Current
/INDEX
/EOM
15 V max. 6 mA
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪈㪍㪏
㪚㪦㪤㪤㪦㪥
㪆㪠㪥㪛㪜㪯
㪆㪜㪦㪤
㪪㪚㪘㪥㪥㪜㪩㩷㪠㪥㪫㪜㪩㪝㪘㪚㪜㩷㪙㪦㪘㪩㪛
㪪㪚㪘㪥㪥㪜㪩㩷㩷㪠㪥㪫㪜㪩㪝㪘㪚㪜
㪚㪦㪥㪥㪜㪚㪫㪦㪩
