Keysight E4980A/AL Precision LCR Meter 43
Overview
Basic Operation
Basic Operation
The E4980A/AL’s basic operation is described below.
1. Display the desired page using both the MENU keys and softkeys.
2. Move the cursor to the desired field using the cursor keys. When the cursor
is moved to a certain field, the field changes to an inverse video image of
the original. The cursor can be moved from field to field (right and left or up
and down).
3. The softkey labels corresponding to the field indicated by the cursor are
displayed automatically. Press the desired softkey.
Use the entry keys to input numeric data. When one of the entry keys is
pressed, the softkeys will change to the available unit softkeys. Pressing
these unit softkeys terminates numeric input.
The unit changes according to the field selected.
How to Use Cursor Keys
Move the cursor to the desired field using the cursor keys as shown in Figure
2-5.

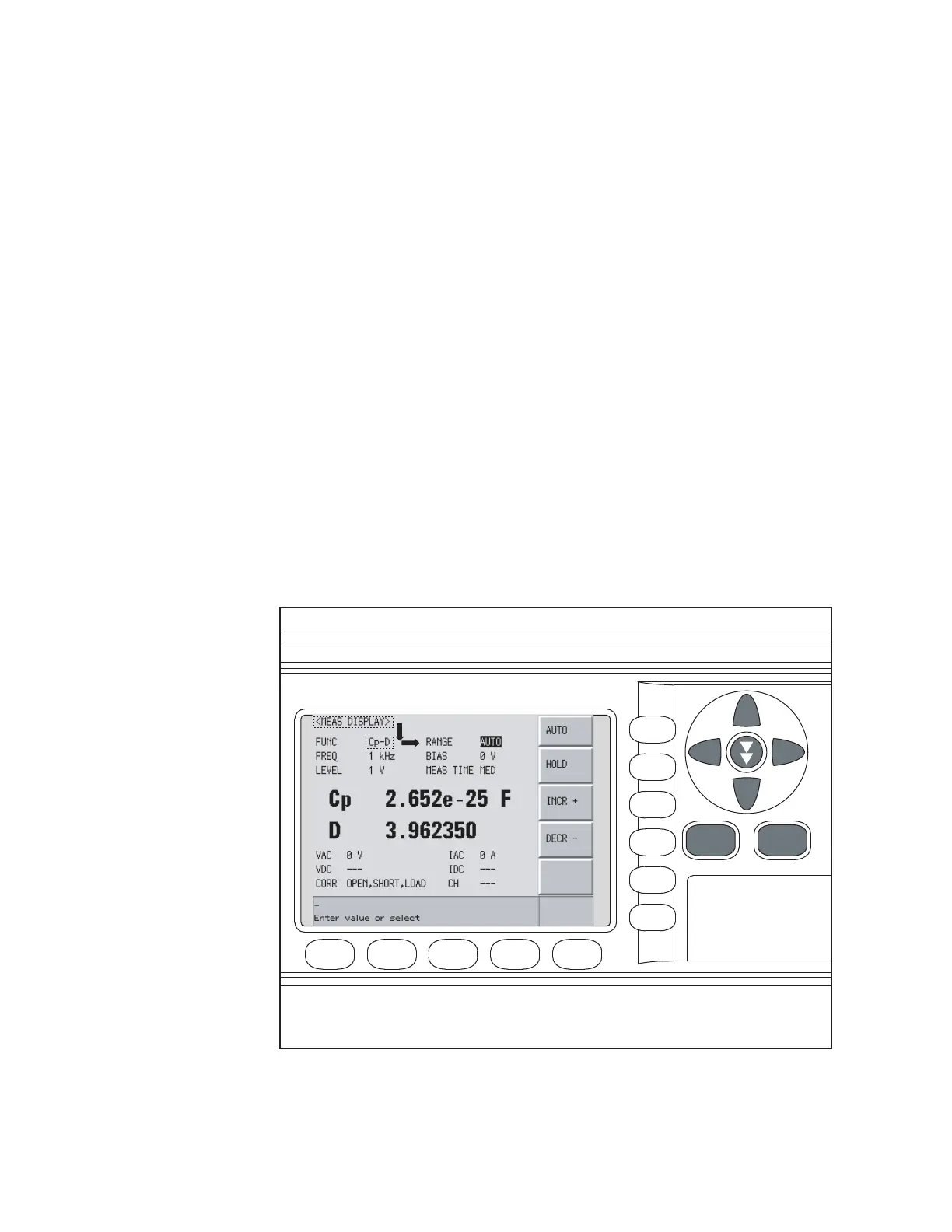

Figure 2-5 Cursor keys and a field operation example
