Configuring Measurement Conditions (Display and Function Related Settings)
CORRECTION page
• When the measurement has finished, the “LOAD measurement in progress”
message disappears.
• During the measurement, the ABORT softkey is shown. Use this key when
you want to abort load correction
Step 15. Repeat Step 3 to Step 14 until you have specified all of your desired
measurement points.
Step 16. Move the cursor into the LOAD field.
Step 17. Press the ON key to enable the load correction feature.
Description of Softkeys
To enable/disable or otherwise control the behavior of correction based on
specified frequency points, use the following softkeys:
Relationships between Correction Based on All Frequency Points and Correction
Based on Specified Frequency Points

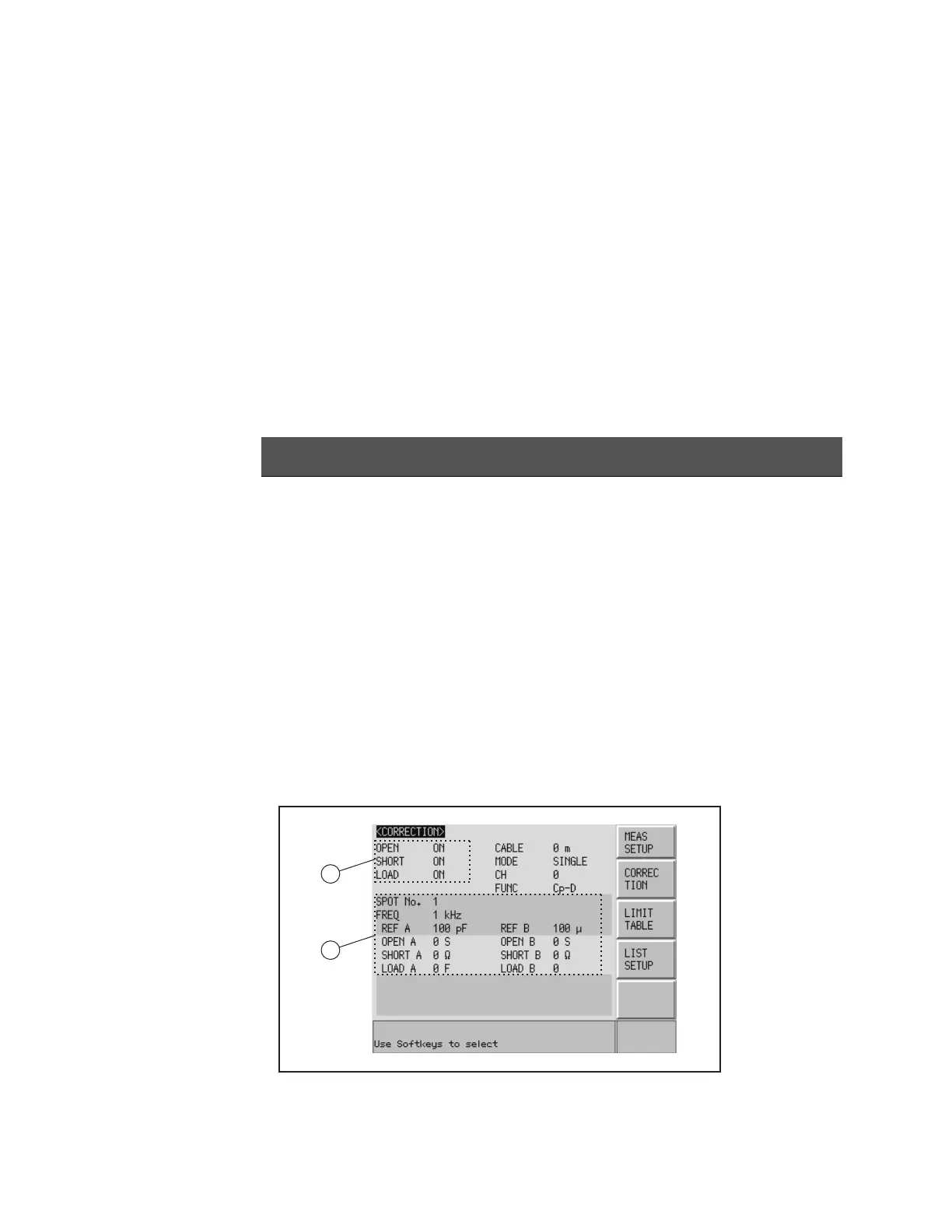

Figure 4-13 shows the CORRECTION page and how the open/short/load
correction features are related to each other.
Figure 4-13 How correction features are related to each other
Softkey Description
ON Enables the current measurement point number.
OFF Disables the current measurement point number.
MEAS OPEN Starts open correction.
MEAS SHORT Starts short correction.
MEAS LOAD Starts load correction.
