Kyocera TASKalfa 6501i - Machine Cross Section

2N8/2N7
1-1-15
1-1-3 Machine cross section

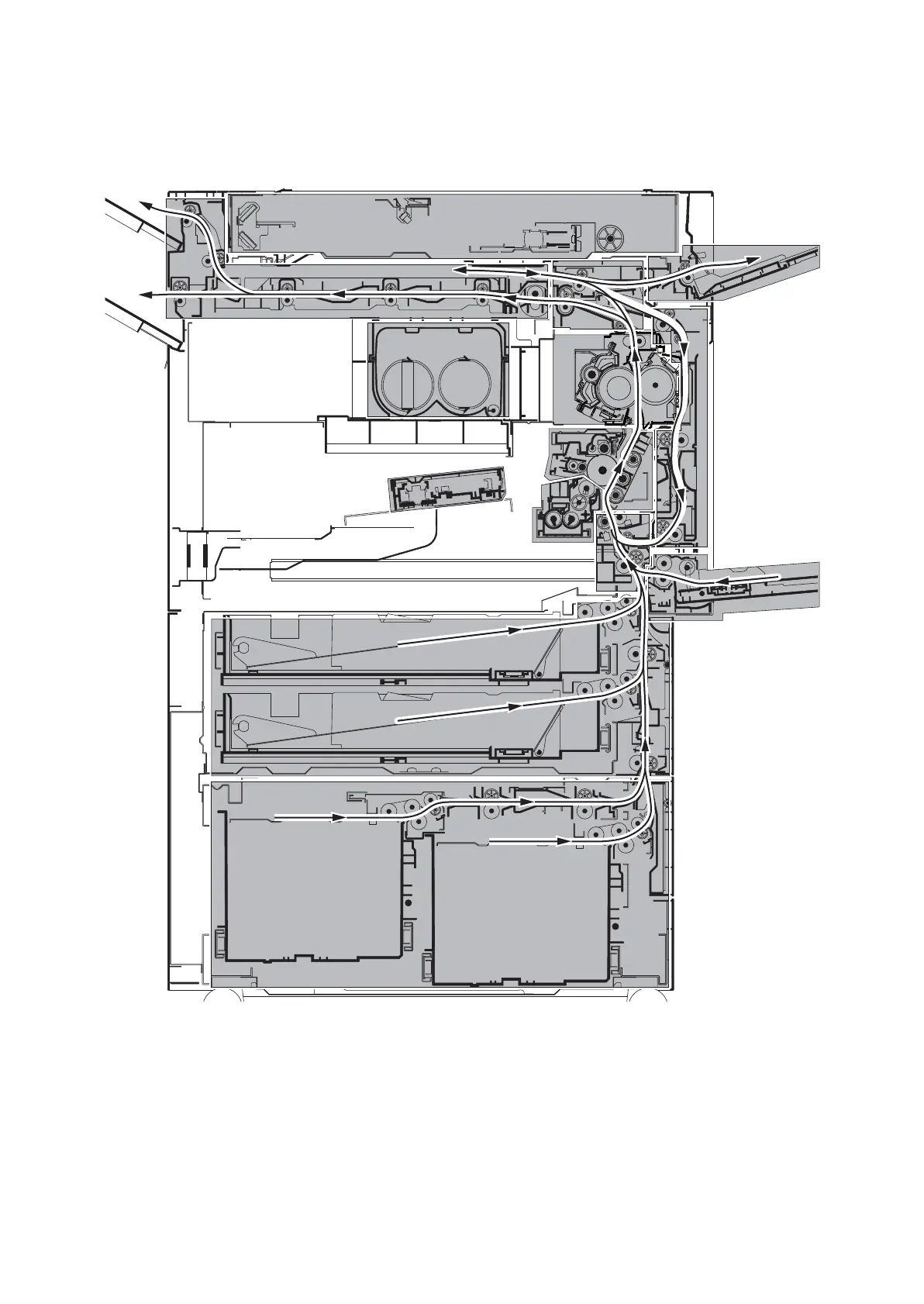

(1) Machine
Figure 1-1-6
1. Paper feed section
(cassette 1, 2)
2. Paper feed section
(cassette 3, 4)
3. MP tray paper feed section
4. Paper conveying section
5. Optical section
6. Laser scanner unit
7. Drum unit
8. Developer unit
9. Toner container section
10. Transfer/Separation sections
11. Fuser section
12. Feed shift/Switchback
sections
13. Duplex section
14. Bridge section
15. Job separator section
