(6) Detaching and refitting the PF lift motor 1 and 2
Procedure
1. Remove the PF rear cover (see page 1-
5-100).
2. Remove the connector each.
3. Remove three screws each and then
remove the PF lift motor 1 and 2.
4. Check or replace the PF lift motor and
refit all the removed parts.

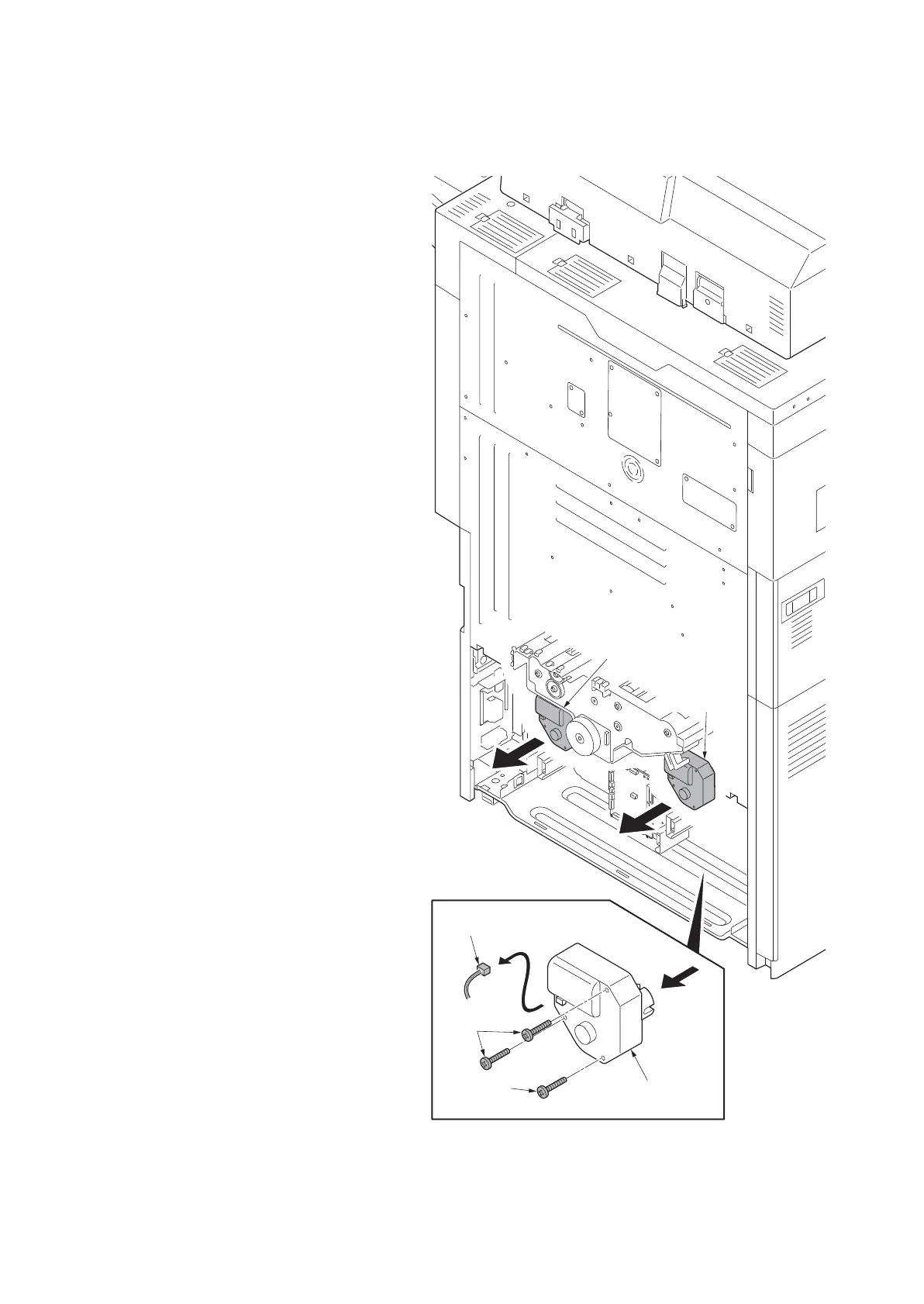

Figure 1-5-186
Connector
Screws
Screw
PF lift motor
PF lift
motor 1
PF lift
motor 2
