Caution
To ease setup, the device was shipped
with the developer unit already replenished
with developer. Therefore, to prevent
developer from spilling during shipping, a
developer shutter is equipped with the
developer unit.
To disengage the shutter, use the following
procedure: Note that if the shutter is not
completely disengaged and retained in
place, the developer in the developer unit
may clog at the outlet causing a damage to
the developer unit.
1. Remove two tapes and then remove the
set up leaflet.
*: The setup leaflet must be affixed in posi-
tion before dispatching the machine.
2. Open the waste toner box cover.

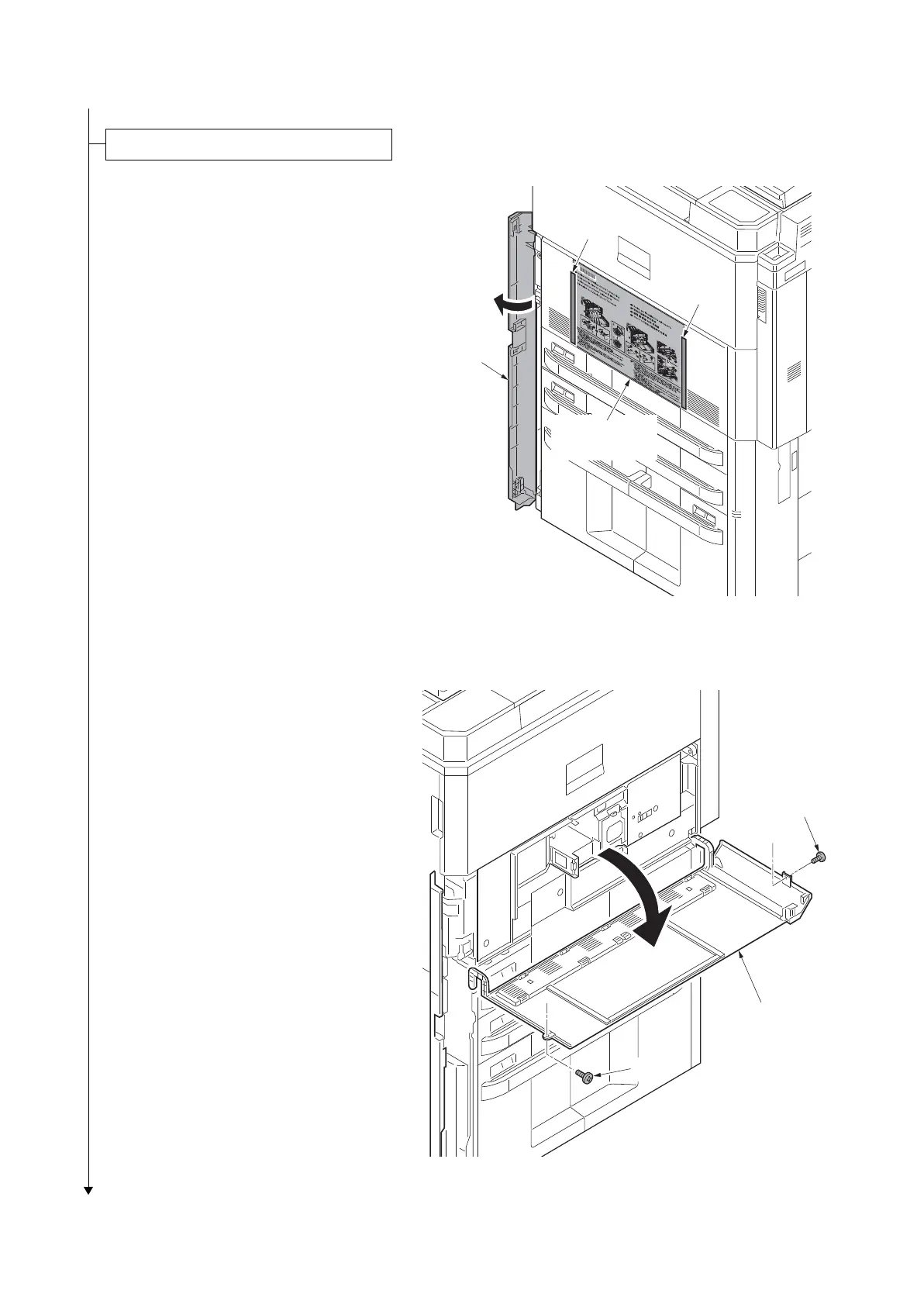

Figure 1-2-41
3. Pull the paper conveying unit out.
4. Remove the two screws and then open
the front middle cover.
Figure 1-2-42
Unlocking the developer waste exit
Tap e
Tap e
Set up leaflet
Wate toner
box cover
Front middle
cover
Screw
Screw
