Kyocera TASKalfa 6501i - Detaching and Refitting the Left Upper Cover; Detaching and Refitting the Fuser IH PWB Cover and IH Electric Wire Cover

2N8/2N7
1-5-10

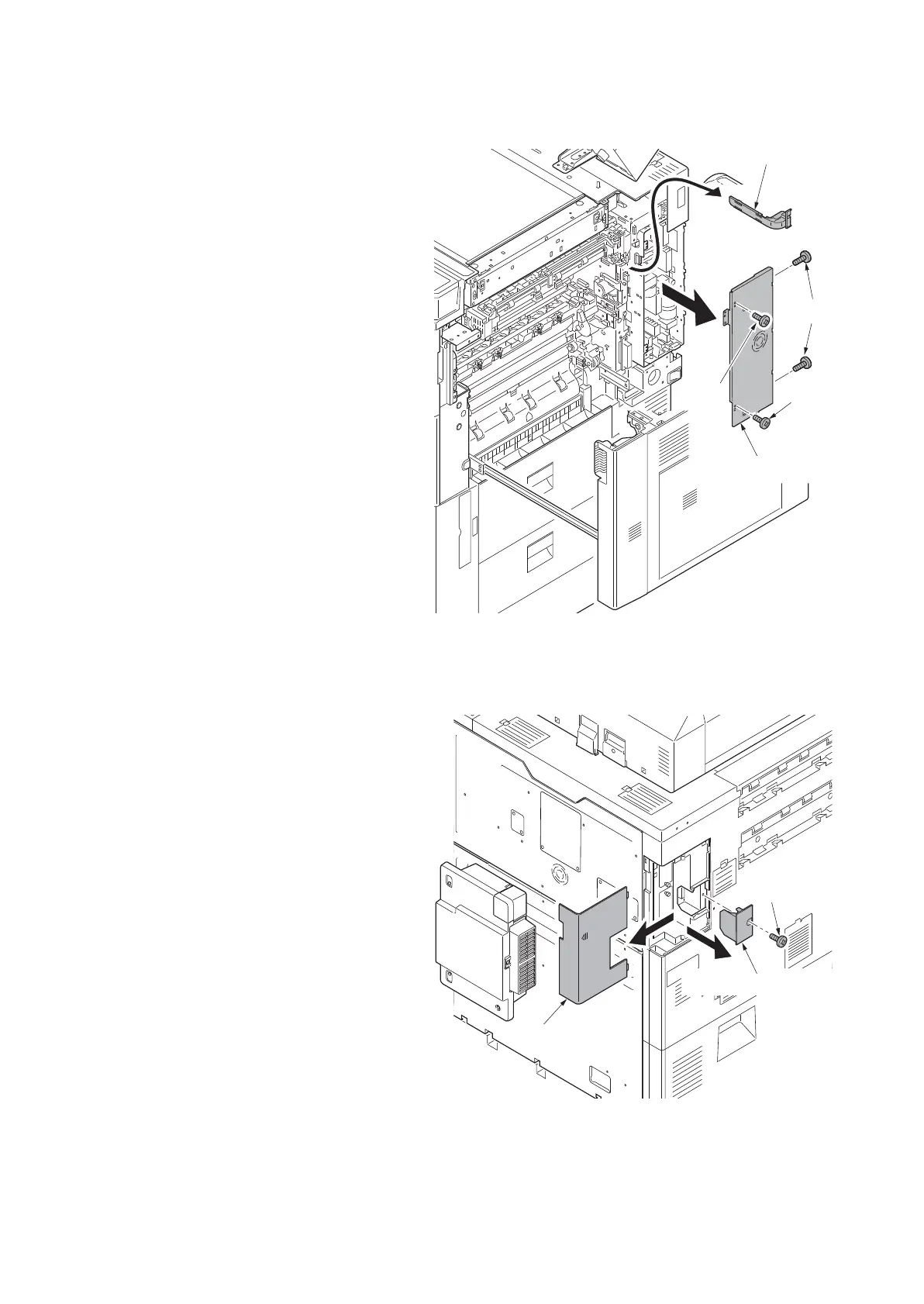

(9) Detaching and refitting the fuser IH PWB cover and IH electric wire cover
Procedure
1. Remove the right middle cover (see
page 1-5-9).
2. Remove four screws and the remove
the fuser IH PWB cover.
3. Remove the IH electric wire cover.
Figure 1-5-15
(10)Detaching and refitting the left upper cover
Procedure.
1. Remove the controller cover.
2. Remove the screw and then remove the
controller lid.
Figure 1-5-16
Screw
Screws
IH electric wire cover
Fuser IH PWB cover
Screw
Screw
Controller lid
Controller
cover
