2N8/2N7
2-2-12
(5) Others

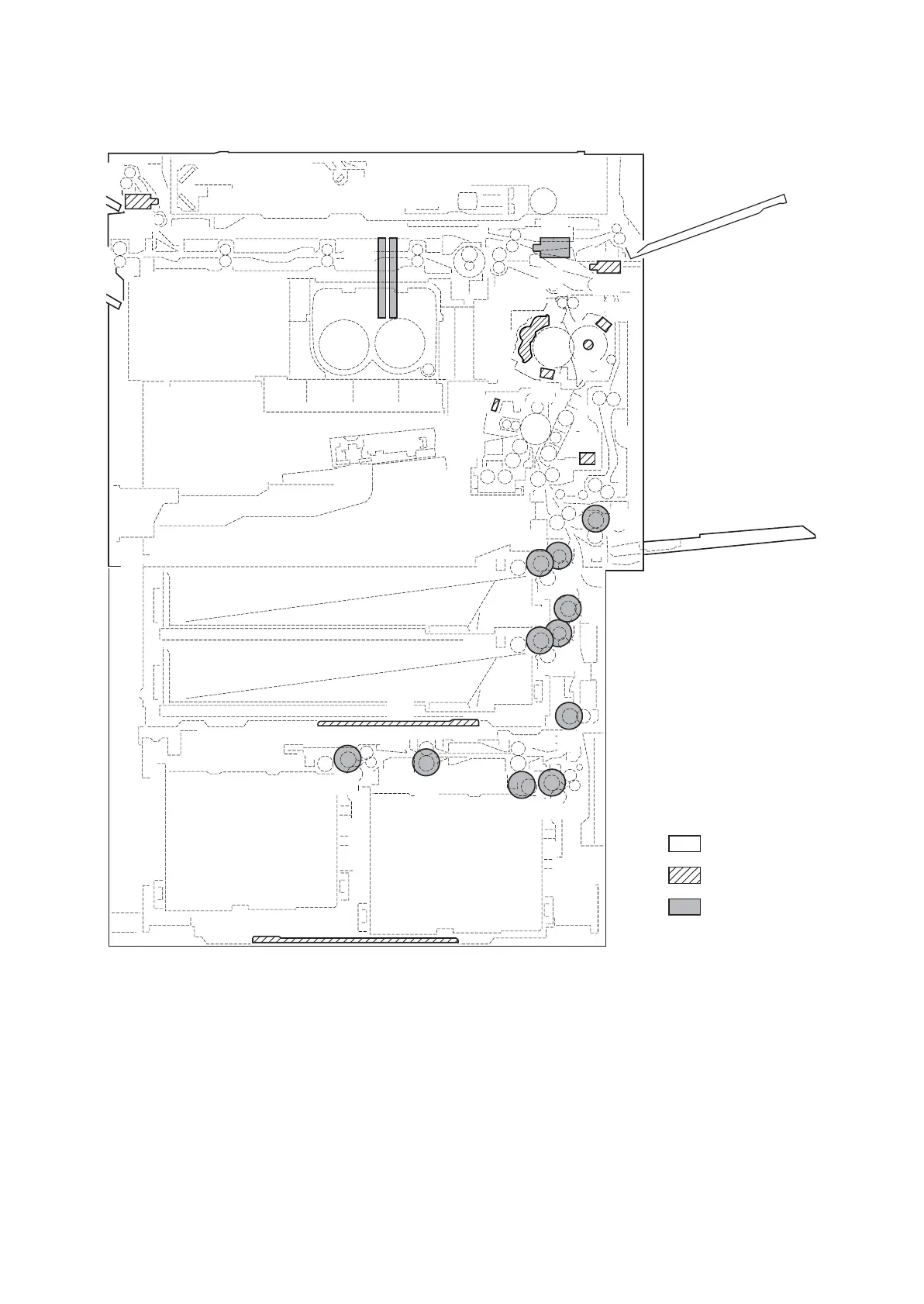

Figure 2-2-6 Others
1. Paper feed clutch 1 (PFCL1) ................ Primary paper feed from cassette 1.
2. Paper feed clutch 2 (PFCL2) ................ Primary paper feed from cassette 2.
3. Assist clutch 1 (ASCL1) ........................ Controls the drive of the assist roller (cassette 1).
4. Assist clutch 2 (ASCL2) ........................ Controls the drive of the assist roller (cassette 2).
5. Paper conveying clutch (PCCL)............ Controls the drive of vertical conveying section.
6. MP paper feed clutch (MPPFCL) .......... Controls primary paper feed from the MP tray.
7. PF paper feed clutch 1 (PFPFCL1)....... Primary paper feed from cassette 3.
8. PF paper feed clutch 2 (PFPFCL2)....... Primary paper feed from cassette 4.
17
23
21
22
16
18
19
20
13
14
15
17
6
9
7
10
11
8
1
2
5
4
3
12
Machine inside
Machine front
Machine rear
