2N8/2N7
1-2-60
Fitting the KMAS interface PWB

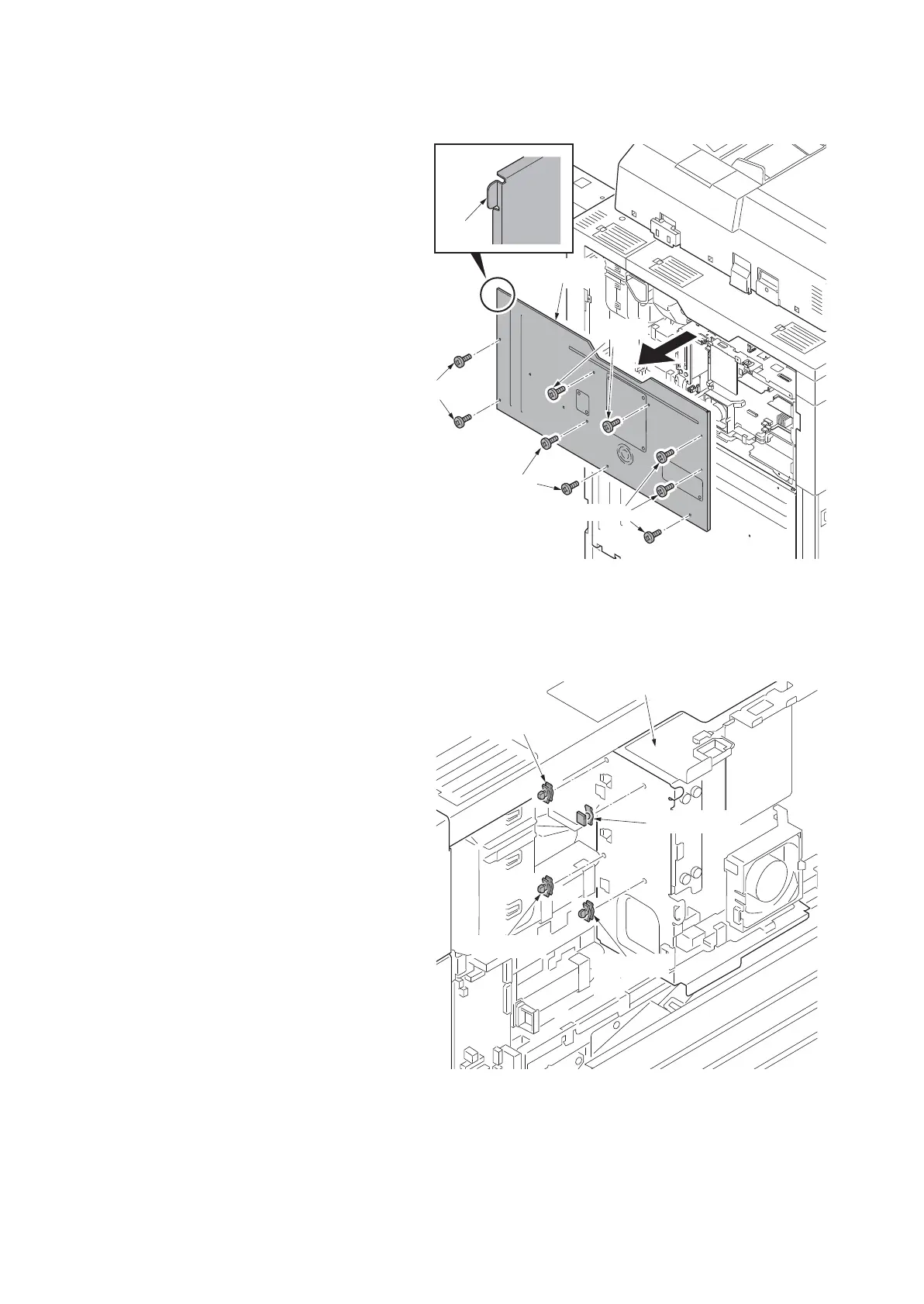

2. Remove nine screws and then remove
the rear upper cover.
*: To fix a cover, insert the hook at the left
top first by bowing the cover.
Figure 1-2-89
3. Attach one spacer A and three spacers
B to the side of the controller box.
Figure 1-2-90
Screws
Screws
Screws
Screws
Rear upper
cover
Hook
Spacer B
Spacer B
Spacer B
Spacer A
Controller box
To Next Page
